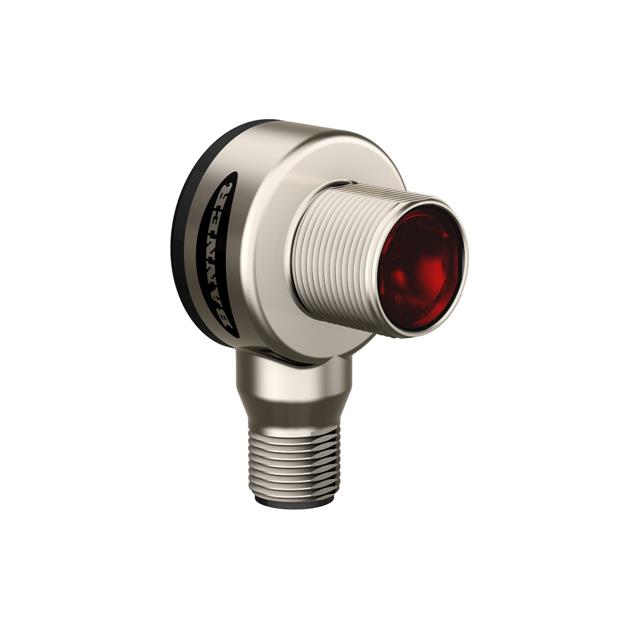

TM18VP6FF25Q8

Active

BANNER ENGINEERING

EZ BEAM TM18: FIXED FIELD BACKGR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ BEAM TM18: FIXED FIELD BACKGR

Technical Specifications

Parameters and characteristics for this part

Specification	TM18VP6FF25Q8

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP69K
Light Source	Red (660nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	3 ms
Sensing Distance	0.98 in
Sensing Distance	25 mm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Output Configuration	Connection Method	Response Time	Light Source	Ingress Protection	Sensing Distance	Sensing Distance	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING TM18VP6FF100Q5	PNP	Connector	3 ms	Red (660nm)	IEC IP67 IEC IP69K	3.937 in	100 mm	Reflective	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6FF100IRQ8	PNP - Dark-ON/Light-ON - Selectable	Connector	3 ms	Infrared (870nm)	IEC IP69K NEMA 6P	3.937 in	100 mm	Background Suppression	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6DVQ8	PNP	Connector	3 ms	Red (660nm)	IEC IP67 IEC IP69K	19.685 in	50 cm	Diffuse	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6FF25Q8	PNP - Dark-ON/Light-ON - Selectable	Connector	3 ms	Red (660nm)	IEC IP69K NEMA 6P	0.98 in	25 mm	Background Suppression	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6LPQ8	PNP	Connector	3 ms	Red (624nm)	IEC IP67 IEC IP69K	18.04 ft	5.5 m	Retroreflective	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6RQ8	PNP	Connector	1.5 ms		IEC IP67 IEC IP69K	787.402 in	20 m	Through-Beam	30 VDC	10 VDC	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 132.00

General part information

Background Suppression Optical Sensor 0.98" (25mm) PNP - Dark-ON/Light-ON - Selectable
