02193.15MXABP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, TIME DELAY, 3.15 A, 250 V, 5MM X 20MM, 0.2" X 0.79", 219XA SERIES
Deep-Dive with AI
Search across all available documentation for this part.
02193.15MXABP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, TIME DELAY, 3.15 A, 250 V, 5MM X 20MM, 0.2" X 0.79", 219XA SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 02193.15MXABP |
|---|---|
| Approval Agency | CE, PSE, CCC, BSI, CSA, SEMKO, VDE, UR |
| Breaking Capacity @ Rated Voltage | 150 A |
| Current Rating (Amps) | 3.15 A |
| DC Cold Resistance | 0.0231 Ohms |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 5.2 mm |
| Size / Dimension [diameter] | 0.205 in |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
02193.15 Series

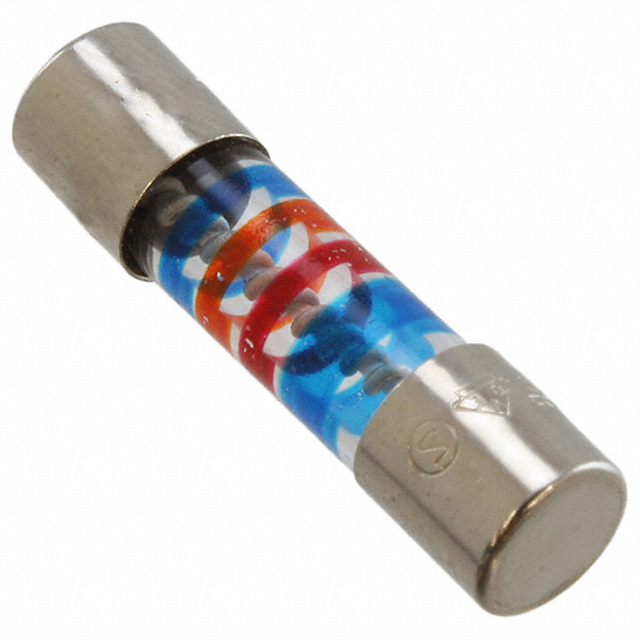

5x20mm time-Lag glass body cartridge fuse designed to IEC specification
