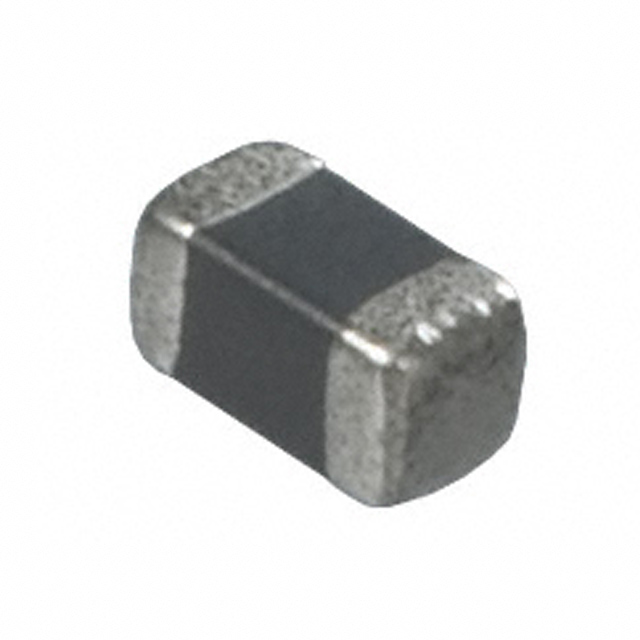

NCP15XV103E03RC
ActiveMurata Power Solutions Inc.
THERMISTOR NTC 10KOHM 3900K 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCP15XV103E03RC
ActiveMurata Power Solutions Inc.
THERMISTOR NTC 10KOHM 3900K 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NCP15XV103E03RC |
|---|---|
| B Value Tolerance | 3 % |
| B25/100 | 3944 K |
| B25/50 | 3900 K |
| B25/85 | 3934 K |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Power - Max [Max] | 100 mW |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.13 | |
| 5 | $ 0.11 | |||
| 10 | $ 0.10 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.13 | ||
| 5 | $ 0.11 | |||
| 10 | $ 0.10 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.06 | ||
| 20000 | $ 0.06 | |||
| 30000 | $ 0.05 | |||
| 50000 | $ 0.05 | |||
| 70000 | $ 0.05 | |||
| 100000 | $ 0.05 | |||
Description
General part information
NCP15XV Series
NTC Thermistor 10k 0402 (1005 Metric)
