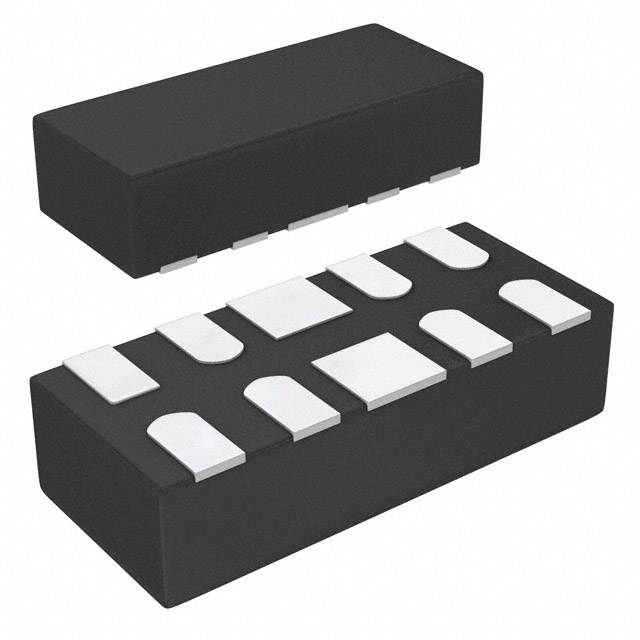

CTLTVS5-4 TR PBFREE
ActiveCentral Semiconductor Corp
TVS DIODE 5VWM 13VC TLM1031
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTLTVS5-4 TR PBFREE |
|---|---|
| Applications | HDMI, Ethernet |
| Capacitance @ Frequency | 0.8 pF |
| Current - Peak Pulse (10/1000µs) | 2.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 10-UFDFN |
| Power - Peak Pulse | 32.5 W |
| Power Line Protection | True |
| Supplier Device Package | TLM1031 |
| Type | Steering |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 13 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.49 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| 2000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.49 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| 2000 | $ 0.19 | |||
| Tape & Reel (TR) | 5000 | $ 0.16 | ||
Description
General part information
CTLTVS5 Series
13V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount TLM1031
