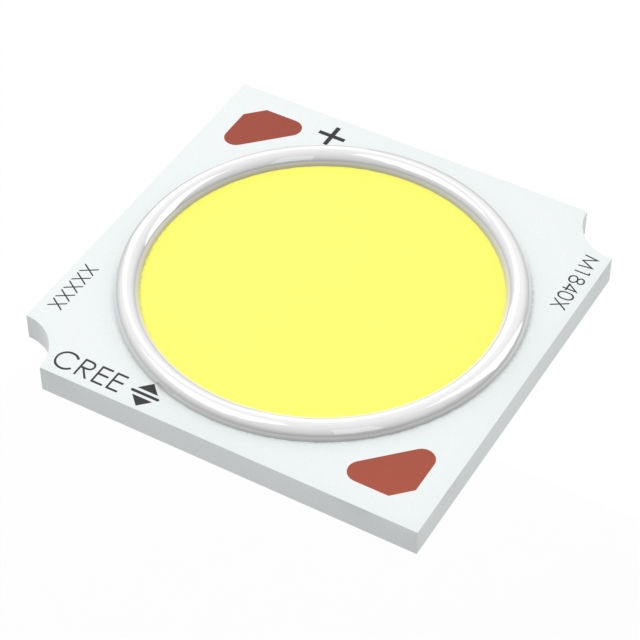

CMA1840-0000-00PN0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMA1840-0000-00PN0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMA1840-0000-00PN0U0A30G

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.26 A
Current - Test	1.1 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14 mm
Lumens/Watt @ Current - Test	132 lm/W
Luminous Flux @ Current/Temperature	5035 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	34.7 V

CMA1840 Series

Part	Viewing Angle	Voltage - Forward (Vf) (Typ)	Type	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	Current - Test	Configuration	Color	Temperature - Test	CCT (K)	Current - Max [Max]	Height [z]	CRI (Color Rendering Index)	Lens Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Cree LED CMA1840-0000-00PN0U0A30H	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Warm White	85 °C	3000 K	2.3 A	1.7 mm	90	Flat
Cree LED CMA1840-0000-000N0H0A40H	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Neutral White	85 °C	4000 K	2.3 A	1.7 mm	80	Flat	5595 lm	147 lm/W
Cree LED CMA1840-0000-000N0U0A27G	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Warm White	85 °C	2700 K	2.3 A	1.7 mm	90	Flat	4278 lm	112 lm/W
Cree LED CMA1840-0000-000N0H0A30H	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Warm White	85 °C	3000 K	2.3 A	1.7 mm	80	Flat	5300 lm	139 lm/W
Cree LED CMA1840-0000-00PN0U0A40G	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Neutral White	85 °C	4000 K	1.26 A	1.7 mm	90	Flat	5147 lm	135 lm/W
Cree LED CMA1840-0000-00PN0Z0A35H	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Warm White	85 °C	3500 K	2.3 A	1.7 mm	95	Flat
Cree LED CMA1840-0000-00PN0U0A30G	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Warm White	85 °C	3000 K	1.26 A	1.7 mm	90	Flat	5035 lm	132 lm/W
Cree LED CMA1840-0000-000N0H0AL7B	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Warm White	85 °C	3000 K	2.3 A	1.7 mm	80	Flat	5300 lm	139 lm/W
Cree LED CMA1840-0000-00PN0Z0A40H	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Neutral White	85 °C	4000 K	2.3 A	1.7 mm	95	Flat
Cree LED CMA1840-0000-00PN0Z0A30H	115 °	34.7 V	Chip On Board (COB)	17.85 mm	17.85 mm	14 mm	1.1 A	Square	Warm White	85 °C	3000 K	2.3 A	1.7 mm	95	Flat

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.04
		10	$ 12.39
		50	$ 12.04
		100	$ 11.08
		200	$ 10.08
		500	$ 9.44
		1000	$ 8.69

Description

General part information

CMA1840 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA1840 White, Warm Square
