HSD-04C-S-SD-SG-C4

Active

Adam Tech

CONN FAKRA HIGH SPEED DATA 4POS

Search across all available documentation for this part.

Active

Adam Tech

CONN FAKRA HIGH SPEED DATA 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	HSD-04C-S-SD-SG-C4

Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Quadraxial, Fakra, HSD®
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polybutylene Terephthalate (PBT)
Fastening Type	Latch Lock
Features	Code C
Frequency - Max [Max]	2 GHz
Housing Color	Blue
Impedance	100 Ohms
Mating Cycles	25
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Connector Style	Housing Color	Body Material	Contact Termination	Fastening Type	Frequency - Max [Max]	Number of Ports	Shield Termination	Center Contact Material	Features	Connector Type	Mating Cycles	Mounting Type	Body Finish	Center Contact Plating	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material
Adam Tech HSD-04C-S-PRA-SG-C1-TR	Fakra HSD® Quadraxial	Blue	Zinc Alloy	Solder	Latch Lock	2 GHz	1	Solder	Brass	Code C	Male Pin Plug	25	Through Hole Right Angle	Tin	Gold	100 Ohms	-40 °C	105 ░C
Adam Tech HSD-04C-S-SD-SG-C4	Fakra HSD® Quadraxial	Blue	Brass	Solder	Latch Lock	2 GHz	1	Crimp	Phosphor Bronze	Code C	Female Socket Jack	25	Free Hanging (In-Line)		Gold	100 Ohms	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)
Adam Tech HSD-04C-S-PRB-SG-C1-TR	Fakra HSD® Quadraxial	Blue	Zinc Alloy	Solder	Latch Lock	2 GHz	1	Solder	Brass	Code C	Male Pin Plug	25	Through Hole Right Angle	Tin	Gold	100 Ohms	-40 °C	105 ░C
Adam Tech HSD-04C-S-PT-SG-C1-TR	Fakra HSD® Quadraxial	Blue	Brass	Solder	Latch Lock	2 GHz	1	Solder	Brass	Code C	Male Pin Plug	25	Through Hole		Gold	100 Ohms	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

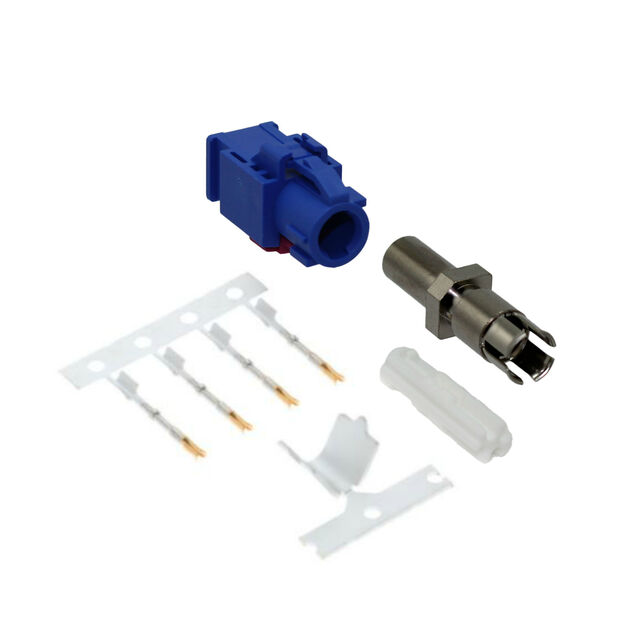

HSD®, Fakra, Quadraxial Connector Jack, Female Socket 100 Ohms Free Hanging (In-Line) Solder
