UGB16JCD2

Active

Diotec Semiconductor

Search across all available documentation for this part.

Active

Diotec Semiconductor

Technical Specifications

Parameters and characteristics for this part

Specification	UGB16JCD2

Current - Average Rectified (Io) (per Diode)	8 A
Current - Reverse Leakage @ Vr	5 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-50 °C

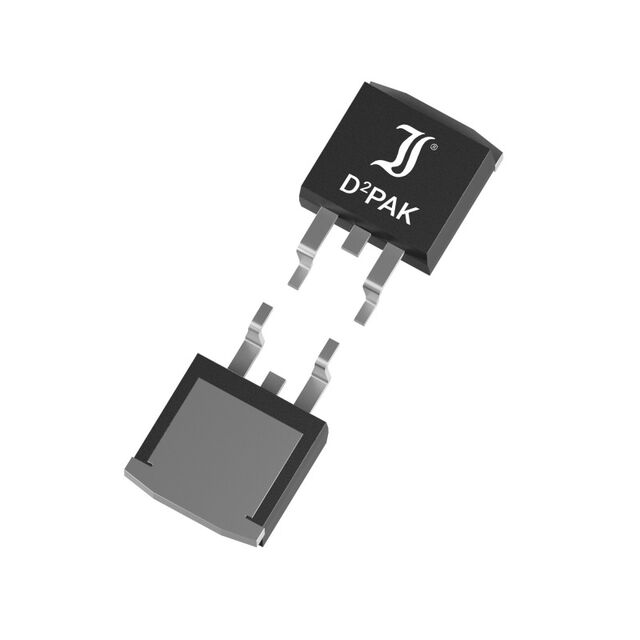

Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Reverse Recovery Time (trr)	45 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-263AB (D2PAK)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.75 V

Part	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Diode Configuration	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Current - Average Rectified (Io) (per Diode)	Technology
Diotec Semiconductor UGB16JCD2	200 mA 500 ns	45 ns	5 µA	1 Pair Common Cathode	TO-263AB (D2PAK)	-50 °C	150 °C	600 V	1.75 V	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	8 A	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.63

General part information

Diode Array 1 Pair Common Cathode 600 V 8A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
