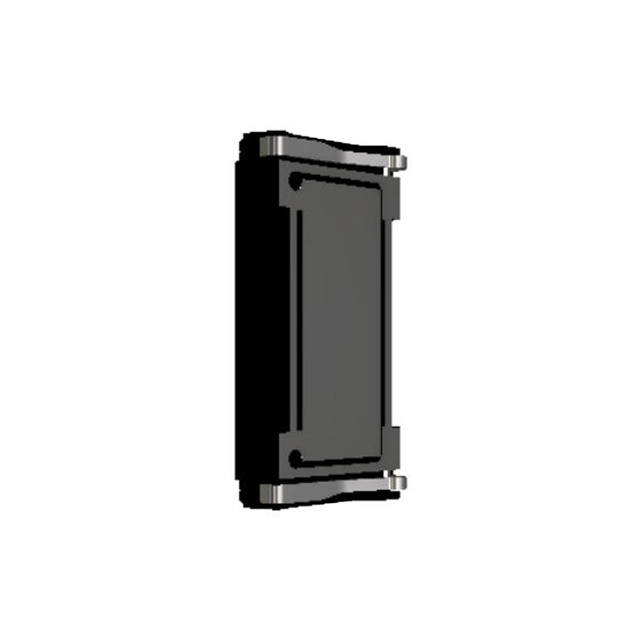

AR01232MS-SC12-WP-R

Active

PUI AUDIO

32Ω ELECTROMAGNETIC TYPE 450HZ 20MW SPEAKERS ROHS

Search across all available documentation for this part.

Active

PUI AUDIO

32Ω ELECTROMAGNETIC TYPE 450HZ 20MW SPEAKERS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Port Location	Shape	Impedance	Frequency - Self Resonant	Material - Cone	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Frequency Range [Max]	Frequency Range [Min]	Material - Magnet	Termination	Efficiency - dBA	Technology	Efficiency - Type	Power - Max [Max]	Power - Rated	Efficiency - Testing	Operating Temperature [Min]	Operating Temperature [Max]	Distortion Rating [Max]
PUI AUDIO AR01232MS-SC12-WP-R	Top	Rectangular	32 Ohms	450 Hz	Polyimide (PI)	0.472 in	0.236 in	6 mm	12 mm	IP67 - Dust Tight Waterproof	2 mm	0.079 in	Receiver	7 kHz	300 Hz	Nd-Fe-B	Spring Type	116 dBA	Magnetic	Sensitivity	30 mW	20 mW
PUI AUDIO AR01232MS-SC12-WP-2-R	Top	Rectangular	32 Ohms	450 Hz	Polyetheretherketone (PEEK)	0.472 in	0.236 in	6 mm	12 mm	IP67 - Dust Tight Waterproof	2.25 mm	0.089 in	Receiver	7 kHz	300 Hz	Nd-Fe-B	Spring Type	117 dBA	Magnetic	Sound Pressure Level (SPL)	30 mW	20 mW	10 mm	-40 °C	80 C	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 Ohms Receiver Speaker 20 mW 300 Hz ~ 7 kHz Top Rectangular
