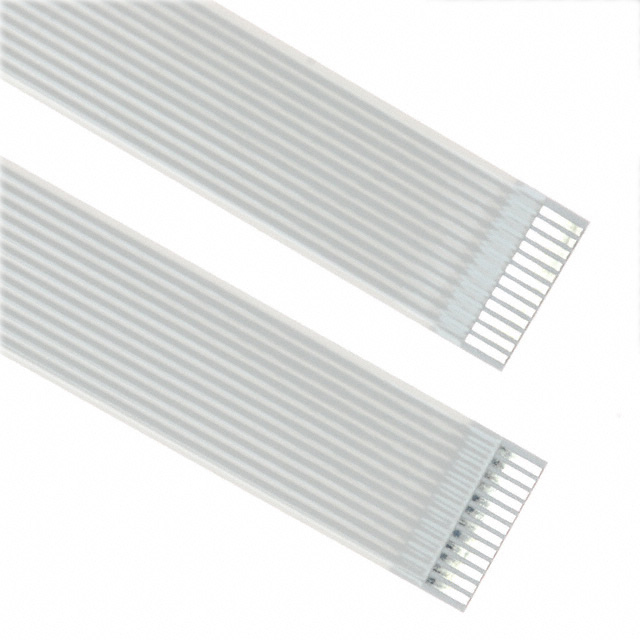

100R12-457B

Active

Parlex USA LLC

CABLE FFC/FPC 12POS 1MM 18"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 12POS 1MM 18"

Technical Specifications

Parameters and characteristics for this part

Specification	100R12-457B

Cable Type	FPC, FFC
Length	18 "
Length	457.2 mm
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Number of Conductors	12
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Cable Type	Termination Style	Number of Conductors	Length	Length [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length	Length [x]
Parlex USA LLC 100R12-305B	FFC FPC	Backers on Both Sides Top on Both Sides	12	304.8 mm	12 in	0.14 in	3.56 mm	0.039 in	1 mm
Parlex USA LLC 100R12-254B	FFC FPC	Backers on Both Sides Top on Both Sides	12	254 mm	10 in	0.14 in	3.56 mm	0.039 in	1 mm
Parlex USA LLC 100R12-457B	FFC FPC	Backers on Both Sides Top on Both Sides	12	457.2 mm		0.14 in	3.56 mm	0.039 in	1 mm	18 "
Parlex USA LLC 100R12-152B	FFC FPC	Backers on Both Sides Top on Both Sides	12		5.984 in	0.14 in	3.56 mm	0.039 in	1 mm		152 mm
Parlex USA LLC 100R12-203B	FFC FPC	Backers on Both Sides Top on Both Sides	12		7.992 in	0.14 in	3.56 mm	0.039 in	1 mm		203 mm
Parlex USA LLC 100R12-76B	FFC FPC	Backers on Both Sides Top on Both Sides	12	76.2 mm		0.14 in	3.56 mm	0.039 in	1 mm	3 in
Parlex USA LLC 100R12-102B	FFC FPC	Backers on Both Sides Top on Both Sides	12	101.6 mm		0.14 in	3.56 mm	0.039 in	1 mm	4 in
Parlex USA LLC 100R12-127B	FFC FPC	Backers on Both Sides Top on Both Sides	12	127 mm		0.14 in	3.56 mm	0.039 in	1 mm	5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position FFC, FPC Cable 0.039" (1.00mm) 18.0" (457.2mm)
