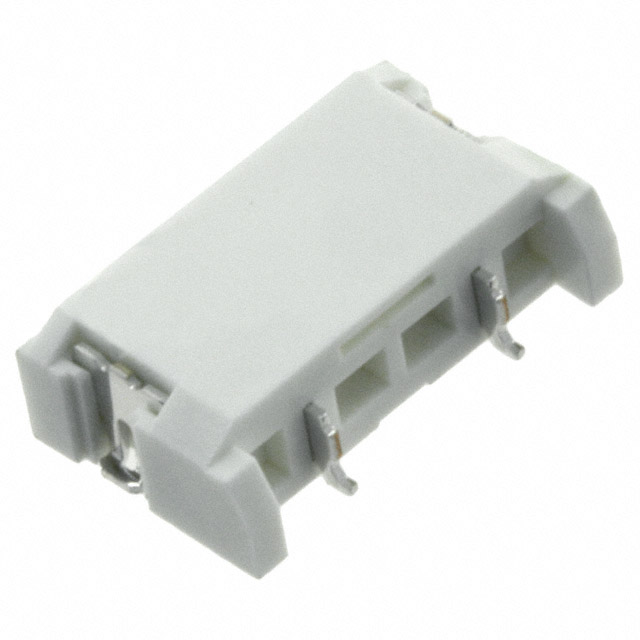

02R-LEBSS-TB
ActiveJST Sales America Inc.
CONN SSL RCPT 2POS 4MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
02R-LEBSS-TB
ActiveJST Sales America Inc.
CONN SSL RCPT 2POS 4MM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 02R-LEBSS-TB |
|---|---|
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Features | Solder Retention |
| Housing Color | White |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 4 mm |
| Pitch [x] | 0.157 in |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
Description
General part information
02R-LEBS Series
SSL Connector 2 Position Receptacle Board to Board or Cable 0.157" (4.00mm) Solder
