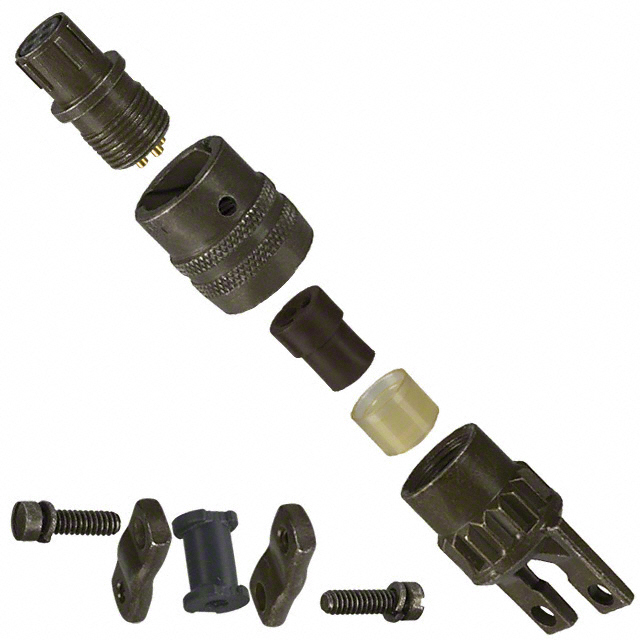

MS3116F-8-4S
UnknownAmphenol Industrial Operations
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116F-8-4S
UnknownAmphenol Industrial Operations
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3116F-8-4S |
|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert | 8-4 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.43 | |
| 10 | $ 68.75 | |||
| 25 | $ 62.52 | |||
| 50 | $ 58.32 | |||
| 100 | $ 54.52 | |||
Description
General part information
MS3116F8 Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
