58910-501
ActiveLaird Thermal Systems, Inc.
CP14-127-045-L2-W4.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
58910-501
ActiveLaird Thermal Systems, Inc.
CP14-127-045-L2-W4.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 58910-501 |
|---|---|
| Current - Max [Max] | 8.5 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Lapped |
| Height [z] | 3.33 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 72 W |
| Resistance | 1.55 Ohms |
| Size / Dimension [x] | 39.9 mm |
| Size / Dimension [y] | 39.9 mm |
| Voltage - Max [Max] | 14.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.26 | |
| 20 | $ 29.51 | |||
| 100 | $ 26.95 | |||
Description
General part information
58910 Series

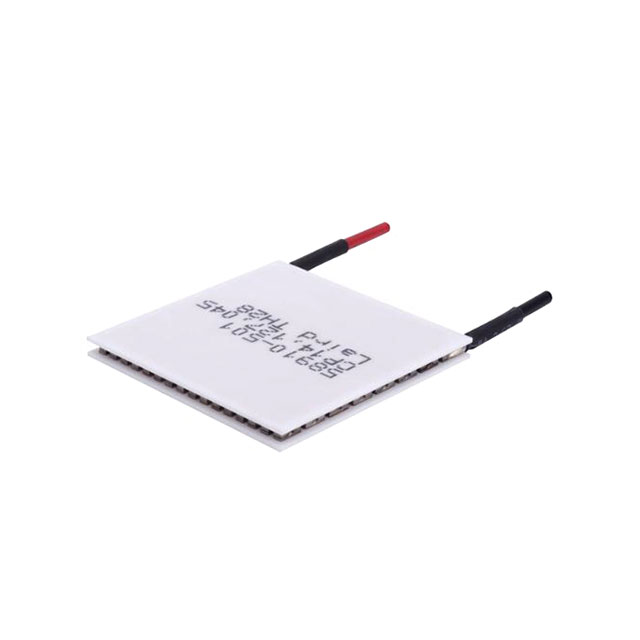

Peltier Module 72.0W @ 25°C 8.5 A 80°C
Documents
Technical documentation and resources
