VMS-300-D1224

Active

CUI Inc.

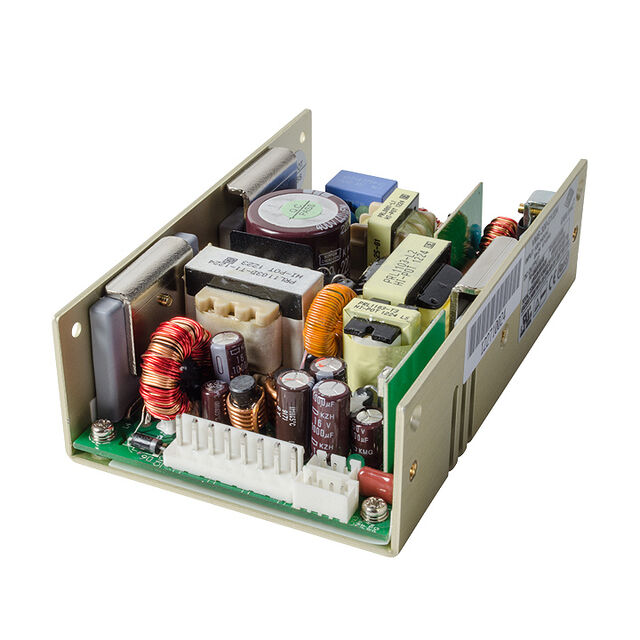

AC/DC POWER SUPPLY DUAL-OUT 12V/24V 6.67A/3.33A 160W MEDICAL

Deep-Dive with AI

Search across all available documentation for this part.

VMS-300-D1224

Active

CUI Inc.

AC/DC POWER SUPPLY DUAL-OUT 12V/24V 6.67A/3.33A 160W MEDICAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VMS-300-D1224

Applications	Medical
Approval Agency	IEC, TUV, CSA, EN, CB Scheme
Current - Output 1	10 A
Current - Output 2	5 A
Efficiency	85 %
Features	PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	120 W, 240 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3.2 in
Size / Dimension [y]	81.3 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	55011 Class B, C22.2 No. 60601-1, 61000-3-3, 61000-3-2, 60601-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V
Voltage - Output 2	24 V

VMS-300 Series

Part	Efficiency	Applications	Features	Voltage - Isolation	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Power (Watts)	Approval Agency	Type	Number of Outputs	Mounting Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Output 2	Current - Output 2
CUI Inc. VMS-300-36-CF	84 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	8.33 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	300 W	CB Scheme CSA EN IEC TUV	Enclosed	1	Chassis Mount	36 V
CUI Inc. VMS-300A-12-1	92.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	16.67 A	90 VAC	264 VAC	80 ¯C	-40 °C	3 "	127 mm			5 in	1.38 in	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Open Frame	1	Chassis Mount	12 V	35.1 mm	76.2 mm	300 W
CUI Inc. VMS-300-48-CF	84 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	6.25 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	300 W	CB Scheme CSA EN IEC TUV	Enclosed	1	Chassis Mount	48 V
CUI Inc. VMS-300-D1224	85 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	10 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	38.1 mm	81.3 mm	5 in	1.5 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	120 W 240 W	CB Scheme CSA EN IEC TUV	Open Frame	2	Chassis Mount	12 V				24 V	5 A
CUI Inc. VMS-300A-12-CNF-1	92.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	16.67 A	90 VAC	264 VAC	80 ¯C	-40 °C	3.46 "	136 mm	40.4 mm	88 mm	5.35 "	1.59 "	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Enclosed	1	Chassis Mount	12 V			300 W
CUI Inc. VMS-300A-12	92.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	16.67 A	90 VAC	264 VAC	80 ¯C	-40 °C	3 "	127 mm			5 in	1.38 in	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Open Frame	1	Chassis Mount	12 V	35.1 mm	76.2 mm	300 W
CUI Inc. VMS-300A-24-CNF	93.5 %	Medical	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	8.33 A	90 VAC	264 VAC	80 ¯C	-40 °C	3.46 "	136 mm	40.4 mm	88 mm	5.35 "	1.59 "	55011 Class B 60601-1 61000-3-2 61000-3-3	200 W	CB Scheme EN IEC TUV UL	Enclosed	1	Chassis Mount	24 V			300 W
CUI Inc. VMS-300-D1224-CFS	85 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	10 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	165.1 mm	40.6 mm	81.3 mm	6.5 in	1.6 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	120 W 240 W	CB Scheme CSA EN IEC TUV	Enclosed	2	Chassis Mount	12 V				24 V	5 A
CUI Inc. VMS-300-D1224-CF	85 %	Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	10 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	120 W 240 W	CB Scheme CSA EN IEC TUV	Enclosed	2	Chassis Mount	12 V				24 V	5 A
CUI Inc. VMS-300-12-CF		Medical	Adjustable Output PFC Remote On/Off Standby Output Universal Input	4000 V	25 A	90 VAC	264 VAC	70 °C	0 °C	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	300 W	CB Scheme CSA EN IEC TUV	Enclosed	1	Chassis Mount	12 V
