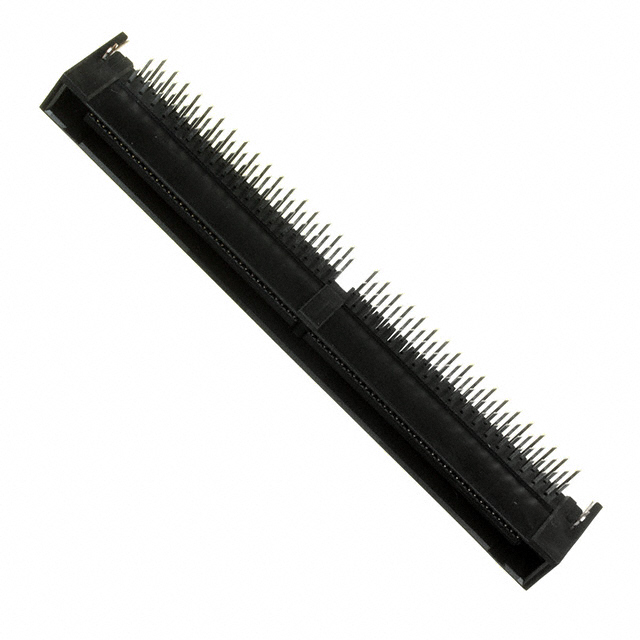

TX25-140P-LT-H1E
ActiveJAE Electronics
CONN PLUG 140POS R/A GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TX25-140P-LT-H1E
ActiveJAE Electronics
CONN PLUG 140POS R/A GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TX25-140P-LT-H1E |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board | 9 mm |
| Height Above Board | 0.354 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 140 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 264 | $ 4.52 | |
Description
General part information
TX25-140 Series
140 Position Connector Plug, Center Strip Contacts Through Hole, Right Angle Gold
