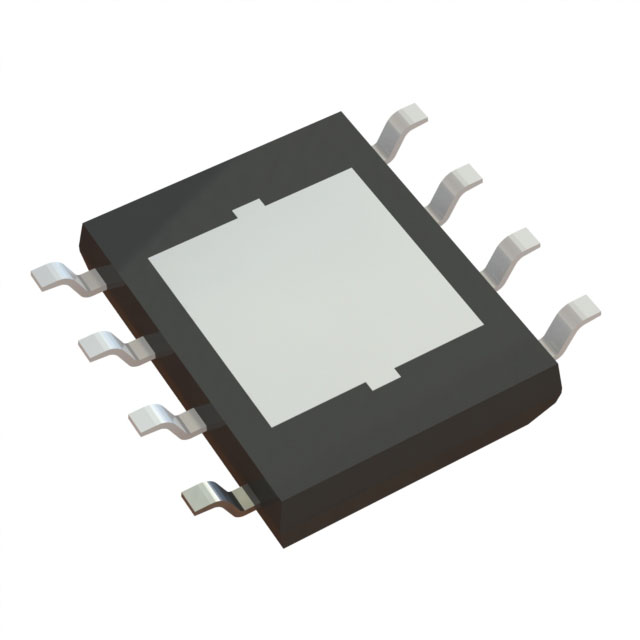

2ED24427N01FXUMA1

Obsolete

Infineon Technologies

IC GATE DRVR LOW-SIDE 8SOIC

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC GATE DRVR LOW-SIDE 8SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	2ED24427N01FXUMA1

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	10 A
Current - Peak Output (Source, Sink) [custom]	10 A
Driven Configuration	Low-Side
Gate Type	N-Channel MOSFET
Input Type	Non-Inverting
Logic Voltage - VIL, VIH	2.5 V, 0.8 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.154 in
Package / Case	8-SOIC
Package / Case	3.9 mm
Supplier Device Package	PG-DSO-8-900
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	5 V

Part	Channel Type	Driven Configuration	Package / Case	Package / Case	Package / Case	Mounting Type	Input Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Gate Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of Drivers	Logic Voltage - VIL, VIH	Voltage - Supply [Min]	Voltage - Supply [Max]
Infineon Technologies 2ED24427N01FXUMA1	Independent	Low-Side	0.154 in	8-SOIC	3.9 mm	Surface Mount	Non-Inverting	10 A	10 A	N-Channel MOSFET	PG-DSO-8-900	-40 °C	125 °C	2	0.8 V 2.5 V	5 V	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Low-Side Gate Driver IC Non-Inverting PG-DSO-8-900
