A2KM1CSQ24VDC1.6D

Active

CIT Relay and Switch

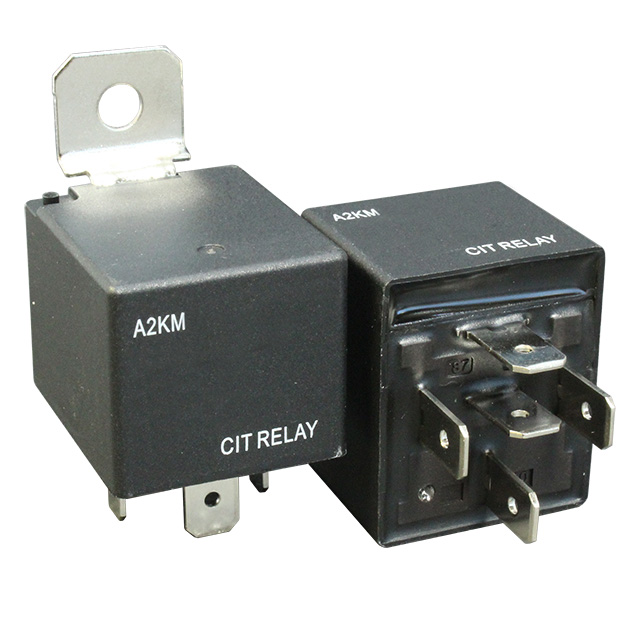

RELAY AUTOMOTIVE SPDT 120A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A2KM1CSQ24VDC1.6D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 120A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A2KM1CSQ24VDC1.6D

Coil Current	66.7 mA
Coil Power	1.6 W
Coil Resistance	360 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	60 A
Mounting Type	Chassis Mount
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Release Time	15 ms
Switching Voltage	110 VDC
Termination Style	Quick Connect - 0.250" (6.3mm)

A2KM1 Series

Part	Mounting Type	Operate Time	Coil Voltage	Termination Style	Contact Material	Release Time	Coil Current	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Power	Must Release Voltage	Features	Coil Type	Contact Form	Coil Resistance	Switching Voltage	Must Operate Voltage
CIT Relay and Switch A2KM1ASQ24VDC1.6	Chassis Mount	15 ms	24 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	66.7 mA	60 A	125 °C	-40 °C	1.6 W	2.4 VDC	Magnetic Blowout Sealed - Fully	Non Latching	SPST-NO (1 Form A)	360 Ohms	110 VDC
CIT Relay and Switch A2KM1CCQ12VDC1.6R	Chassis Mount	15 ms	12 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	133.3 mA	60 A	125 °C	-40 °C	1.6 W	1.2 VDC	Magnetic Blowout Resistor	Non Latching	SPDT (1 Form C)	90 Ohms	110 VDC	7.8 VDC
CIT Relay and Switch A2KM1ACQ24VDC1.6R	Chassis Mount	15 ms	24 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	66.7 mA	60 A	125 °C	-40 °C	1.6 W	2.4 VDC	Magnetic Blowout Resistor	Non Latching	SPST-NO (1 Form A)	360 Ohms	110 VDC
CIT Relay and Switch A2KM1ASQ12VDC1.6D	Chassis Mount	15 ms	12 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	133.3 mA	60 A	125 °C	-40 °C	1.6 W	1.2 VDC		Non Latching	SPST-NO (1 Form A)	90 Ohms	110 VDC	7.8 VDC
CIT Relay and Switch A2KM1CSP24VDC1.6R	Chassis Mount	15 ms	24 VDC	PC Pin	Silver Tin Oxide (AgSnO)	15 ms	66.7 mA	60 A	125 °C	-40 °C	1.6 W	2.4 VDC	Magnetic Blowout Resistor Sealed - Fully	Non Latching	SPDT (1 Form C)	360 Ohms	110 VDC
CIT Relay and Switch A2KM1CSQ12VDC1.6R	Chassis Mount	15 ms	12 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	133.3 mA	60 A	125 °C	-40 °C	1.6 W	1.2 VDC	Magnetic Blowout Resistor Sealed - Fully	Non Latching	SPDT (1 Form C)	90 Ohms	110 VDC	7.8 VDC
CIT Relay and Switch A2KM1CSQ12VDC1.6D	Chassis Mount	15 ms	12 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	133.3 mA	60 A	125 °C	-40 °C	1.6 W	1.2 VDC		Non Latching	SPDT (1 Form C)	90 Ohms	110 VDC	7.8 VDC
CIT Relay and Switch A2KM1CSQ24VDC1.6D	Chassis Mount	15 ms	24 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	66.7 mA	60 A	125 °C	-40 °C	1.6 W	2.4 VDC		Non Latching	SPDT (1 Form C)	360 Ohms	110 VDC
CIT Relay and Switch A2KM1ASP12VDC1.6R	Chassis Mount	15 ms	12 VDC	PC Pin	Silver Tin Oxide (AgSnO)	15 ms	133.3 mA	60 A	125 °C	-40 °C	1.6 W	1.2 VDC	Magnetic Blowout Resistor Sealed - Fully	Non Latching	SPST-NO (1 Form A)	90 Ohms	110 VDC	7.8 VDC
CIT Relay and Switch A2KM1ASQ12VDC1.6	Chassis Mount	15 ms	12 VDC	Quick Connect - 0.250" (6.3mm)	Silver Tin Oxide (AgSnO)	15 ms	133.3 mA	60 A	125 °C	-40 °C	1.6 W	1.2 VDC	Magnetic Blowout Sealed - Fully	Non Latching	SPST-NO (1 Form A)	90 Ohms	110 VDC	7.8 VDC
