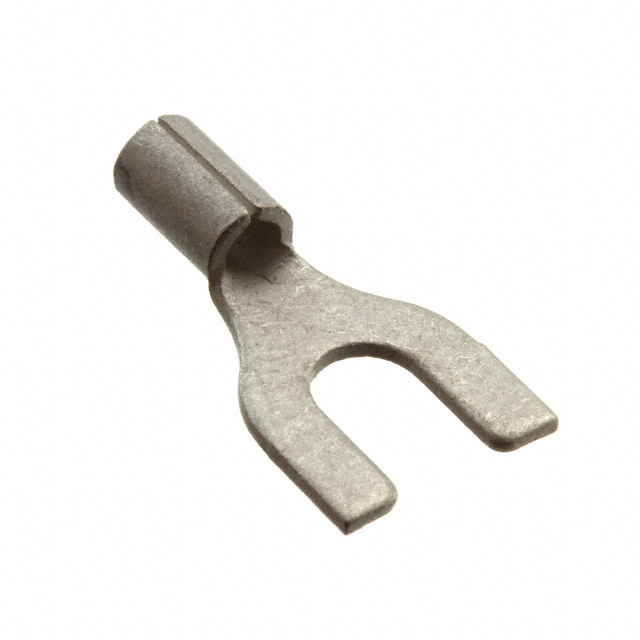

0191400091

Active

Molex

CONN SPADE TERM 14-16AWG #8

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0191400091

Active

Molex

CONN SPADE TERM 14-16AWG #8

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191400091

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall	0.77 in
Length - Overall	19.56 mm
Length - Ring Center to Termination [x]	0.269 in
Length - Ring Center to Termination [x]	6.83 mm
Length - Termination [custom]	0.245 in
Length - Termination [custom]	6.22 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.173 in
Tongue Inside Opening [x]	4.39 mm
Width - Outer Edges [x]	0.388 in
Width - Outer Edges [x]	9.86 mm

019140 Series

Part	Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Finish	Contact Material	Length - Termination [custom]	Length - Termination [custom]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation	Length - Overall [x]	Length - Overall [x]	Mounting Type	Terminal Type	Stud/Tab Size	Length - Overall	Length - Overall	Length - Ring Center to Termination	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]
Molex 0191400088	Crimp	0.295 in	7.49 mm	3.71 mm	0.146 in	Electro-Tin	Copper	0.245 in	6.22 mm	6 Stud	0.211 in	5.36 mm	Non-Insulated	0.635 in	16.13 mm	Free Hanging (In-Line)	Standard
Molex 0191400091	Crimp	0.388 in	9.86 mm	4.39 mm	0.173 in	Electro-Tin	Copper	0.245 in	6.22 mm		0.269 in	6.83 mm	Non-Insulated			Free Hanging (In-Line)	Standard	8 Stud	0.77 in	19.56 mm
Molex 0191400040	Crimp	0.245 in	6.22 mm	3.71 mm	0.146 in	Electro-Tin	Copper	0.245 in	6.22 mm	6 Stud	0.207 in		Non-Insulated	0.639 in	16.23 mm	Free Hanging (In-Line)	Standard				5.26 mm	22 AWG	17.5 AWG
Molex 0191400036	Crimp			4.39 mm	0.173 in	Electro-Tin	Copper	0.245 in	6.22 mm		0.303 in	7.7 mm	Non-Insulated	0.778 "	19.77 mm	Free Hanging (In-Line)	Standard	8 Stud				22 AWG	17.5 AWG	8.03 mm	0.316 in
Molex 0191400085
Molex 0191400031	Crimp	0.291 in	7.39 mm	3.71 mm	0.146 in	Electro-Tin	Copper	0.245 in	6.22 mm	6 Stud	0.207 in		Non-Insulated	0.639 in	16.23 mm	Free Hanging (In-Line)	Standard				5.26 mm	22 AWG	17.5 AWG
Molex 0191400090	Crimp			3.71 mm	0.146 in	Electro-Tin	Copper	0.245 in	6.22 mm	6 Stud	0.269 in	6.83 mm	Non-Insulated			Free Hanging (In-Line)	Standard		0.77 in	19.56 mm				9.19 mm	0.362 "
Molex 0191400195										10 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.14
		100	$ 0.10
		1000	$ 0.08
		3000	$ 0.08

Description

General part information

019140 Series

8 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
