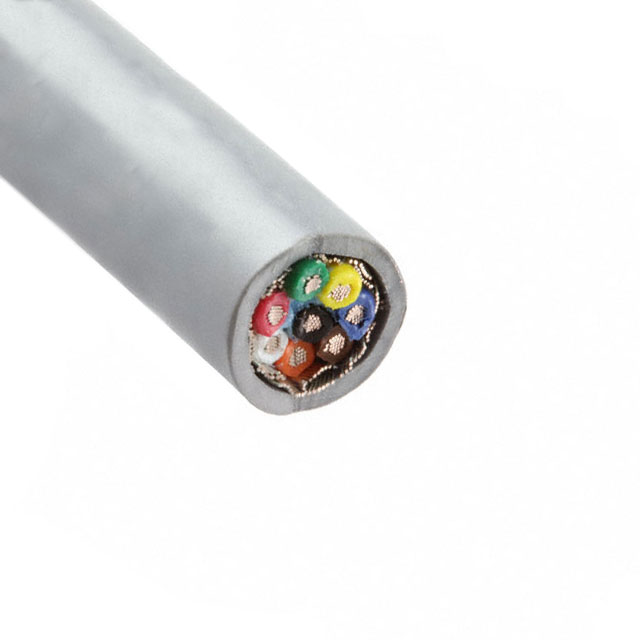

1719 SL001

Active

ALPHA WIRE

CABLE 8COND 20AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 20AWG SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1719 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Material	Jacket Color	Cable Type	Number of Conductors	Shield Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Conductor Strand	Usage	Wire Gauge	Length	Length
ALPHA WIRE 1719 SL002	Poly-Vinyl Chloride (PVC)	Slate	Multi-Conductor	8	Copper Tinned	Copper Tinned	8.31 mm	0.327 in	600 V	Polyethylene (PE)	0.889 mm	0.035 in	85 %	Braid	-20 C	60 °C	500 '	152.4 m	26 34 AWG	Communication Control	20 AWG
ALPHA WIRE 1719 SL001	Poly-Vinyl Chloride (PVC)	Slate	Multi-Conductor	8	Copper Tinned	Copper Tinned	8.31 mm	0.327 in	600 V	Polyethylene (PE)	0.889 mm	0.035 in	85 %	Braid	-20 C	60 °C			26 34 AWG	Communication Control	20 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 5249.49

General part information

8 Conductor Multi-Conductor Cable Slate 20 AWG Braid 1000.0' (304.8m)
