305-062-500-201
ActiveEDAC Inc.

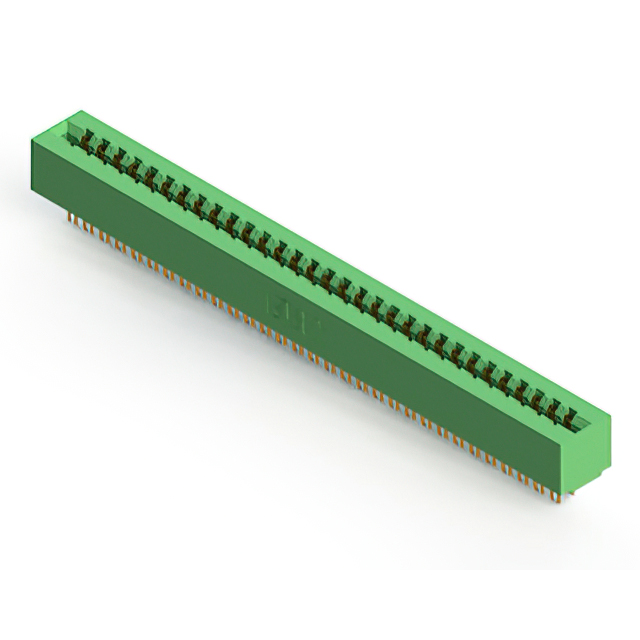

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 62 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-062-500-201
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 62 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-062-500-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
305-062 Series
| Part | Pitch [x] | Pitch [x] | Read Out | Termination Rows | Number of Positions | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Gender | Card Type | Contact Type | Mounting Type | Termination | Contact Finish | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Color | Number of Rows | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Through Hole | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Free Hanging (In-Line) | Solder Eyelet(s) | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Board Edge Straddle Mount | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | Card Extender | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded |
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Solder Eyelet(s) | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | ||
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Board Edge Straddle Mount | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | Card Extender | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Through Hole | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Board Edge Straddle Mount | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | Card Extender | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount |
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Panel Mount Through Hole | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | |
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Board Edge Straddle Mount | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | Card Extender | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 0.156 in | 3.96 mm | Dual | 2 | 62 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Semi Bellows | Board Edge Straddle Mount | Solder | Gold | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 31 | Green | 2 | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
