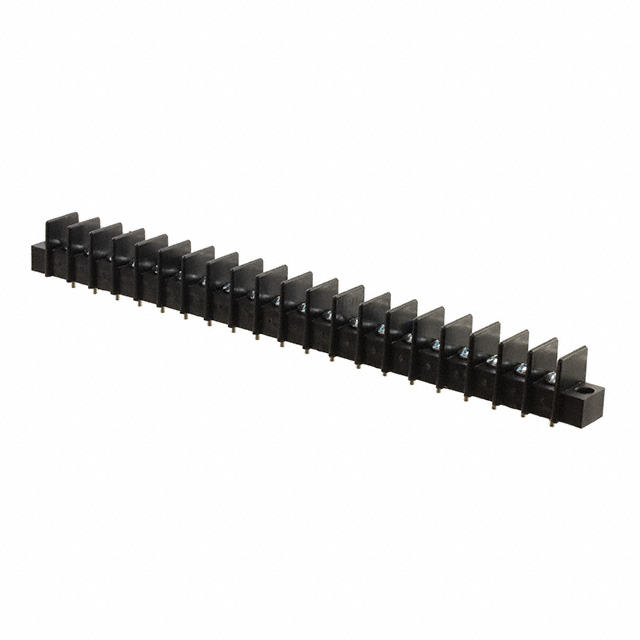

CBP-20

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBP-20

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBP-20

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	20
Number of Rows	1
Number of Wire Entries	20
Operating Temperature	140 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

CBP Series

Part	Features	Number of Rows	Material - Insulation	Terminal Screw Material	Barrier Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Terminal Block Type	Color	Number of Wire Entries	Top Termination	Bottom Termination	Material Flammability Rating	Mounting Type	Operating Temperature	Voltage Rating	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]
Curtis Industries CBP-26	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	26	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	26	12 AWG	22 AWG
Curtis Industries CBP-17	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	17	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	17	12 AWG	22 AWG
Curtis Industries CBP-21	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	21	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	21	12 AWG	22 AWG
Curtis Industries CBP-20	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	20	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	20	12 AWG	22 AWG
Curtis Industries CBP-6	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	6	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	6	12 AWG	22 AWG
Curtis Industries CBP-4	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	4	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	4	12 AWG	22 AWG
Curtis Industries CBP-13	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	13	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	13	12 AWG	22 AWG
Curtis Industries CBP-11	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	11	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	11	12 AWG	22 AWG
Curtis Industries CBP-24	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black		Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	24	12 AWG	22 AWG
Curtis Industries CBP-12	Flange	1	Polyester Thermoplastic	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Barrier Block	Black	12	Screws	PC Pin	UL94 V-0	Chassis Panel Through Hole	140 °C	300 VDC	12	12 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.76
		10	$ 18.96
		25	$ 18.31
		50	$ 17.65
		100	$ 17.12
		250	$ 16.79
		500	$ 16.46

Description

General part information

CBP Series

20 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
