PC236-1C-12S-X
ActivePicker Components

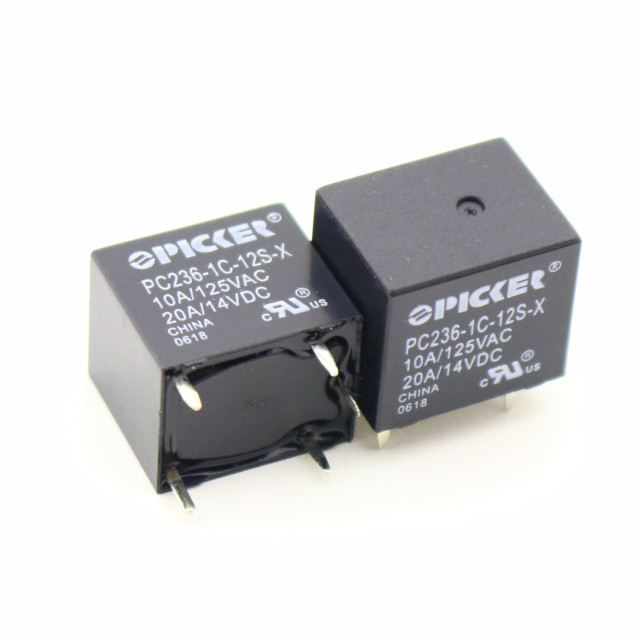

RELAY GEN PURPOSE SPDT 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC236-1C-12S-X
ActivePicker Components
RELAY GEN PURPOSE SPDT 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC236-1C-12S-X |
|---|---|
| Coil Current | 50 mA |
| Coil Insulation | Class B |
| Coil Resistance | 240 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 20 A |
| Load - Max Switching | 960 W, 5540 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 277 VAC, 48 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.09 | |
| 10 | $ 1.02 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.64 | |||
| 5000 | $ 0.61 | |||
Description
General part information
PC236-1C Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Documents
Technical documentation and resources
