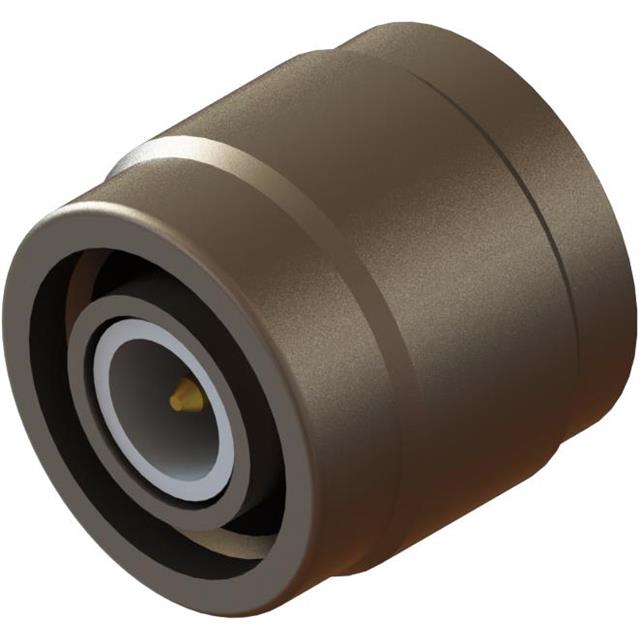

4011-00044

Active

Amphenol SV Microwave

CONN TNC PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TNC PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	4011-00044

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-45 °C
Shield Termination	Solder

Part	Mating Cycles	Dielectric Material	Number of Ports	Cable Group	Cable Group	Shield Termination	Body Finish	Connector Type	Mounting Type	Frequency - Max [Max]	Center Contact Material	Body Material	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Housing Color	Impedance	Connector Style
Amphenol SV Microwave 4011-00044	500	Polytetrafluoroethylene (PTFE)	1	RG-402 (.141" Flexible)	0.141 in	Solder	Nickel	Male Pin Plug	Free Hanging (In-Line)	11 GHz	Brass	Brass	Solder	120 °C	-45 °C	Gold	Silver	50 Ohms	TNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
