HVGC-240-3500AB

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

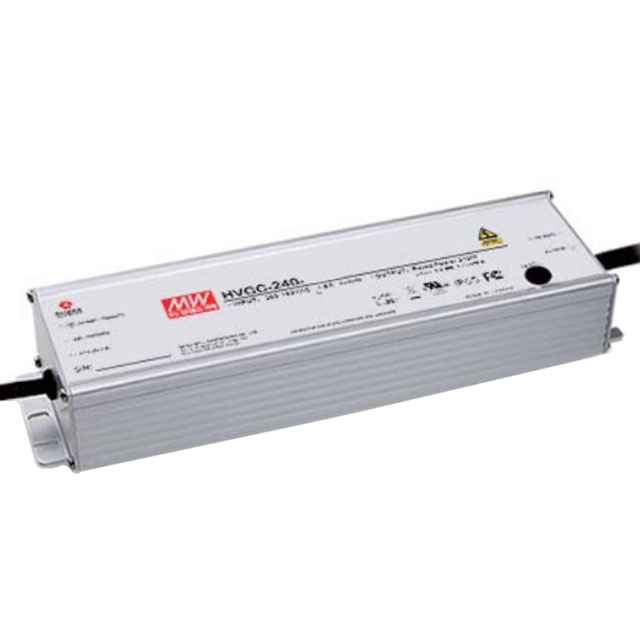

HVGC-240-3500AB

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVGC-240-3500AB

Approval Agency	cURus, FCC
Current - Output (Max) [Max]	1.05 A
Dimming	Analog, PWM
Efficiency	92.5 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	240 W
Ratings	IP65
Size / Dimension [x]	9.06 in
Size / Dimension [x]	230.2 mm
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.8 mm
Standard Number	UL 8750
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	228.6 V
Voltage - Output [Min]	114.3 V

HVGC-240 Series

Part	Ratings	Topology	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Voltage - Input (Max)	Voltage - Input (Min) [Min]	Features	Termination Style	Type	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Power (Watts)	Voltage - Isolation	Mounting Type	Standard Number	Approval Agency	Current - Output (Max)
MEAN WELL USA Inc. HVGC-240-3500B	IP67	AC DC Converter	34.3 V	68.6 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	3.5 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	92.5 %	240 W	3750 V	Chassis Mount
MEAN WELL USA Inc. HVGC-240-1050B	IP67	AC DC Converter	114.3 V	228.6 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	1.05 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	93 %	240 W	3750 V	Chassis Mount
MEAN WELL USA Inc. HVGC-240-3500AB	IP65	AC DC Converter	114.3 V	228.6 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	1.05 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	92.5 %	240 W	3750 V	Chassis Mount	UL 8750	cURus FCC
MEAN WELL USA Inc. HVGC-240-1400AB	IP67	AC DC Converter	85.7 V	171.4 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	1.4 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	93 %	240 W	3750 V	Chassis Mount		cURus FCC
MEAN WELL USA Inc. HVGC-240-2800B	IP67	AC DC Converter	42.9 V	85.7 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1		1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	92.5 %	240 W	3750 V	Chassis Mount			2.8 A
MEAN WELL USA Inc. HVGC-240-700B	IP67	AC DC Converter	171.4 V	342.8 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	700 mA	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	93.5 %	240 W	3750 V	Chassis Mount
MEAN WELL USA Inc. HVGC-240-1750A	IP65	AC DC Converter	68.5 V	137.1 V		528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	1.75 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	93 %	240 W	3750 V	Chassis Mount
MEAN WELL USA Inc. HVGC-240-2800AB	IP65	AC DC Converter	114.3 V	228.6 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	1.05 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	92.5 %	240 W	3750 V	Chassis Mount	UL 8750	cURus FCC
MEAN WELL USA Inc. HVGC-240-1750AB	IP65	AC DC Converter	114.3 V	228.6 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	1.05 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	92.5 %	240 W	3750 V	Chassis Mount	UL 8750	cURus FCC
MEAN WELL USA Inc. HVGC-240-2100AB	IP65	AC DC Converter	114.3 V	228.6 V	Analog PWM	528 VAC	180 VAC	OTP OVP SCP	Wire Leads	Constant Current	1	1.05 A	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	90 °C	-40 °C	92.5 %	240 W	3750 V	Chassis Mount	UL 8750	cURus FCC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 86.50

Description

General part information

HVGC-240 Series

1.05A 114.3 ~ 228.6V Constant Current LED Driver AC DC Converter Topology 1 Output
