WL50SWSSGL11Q

Active

BANNER ENGINEERING

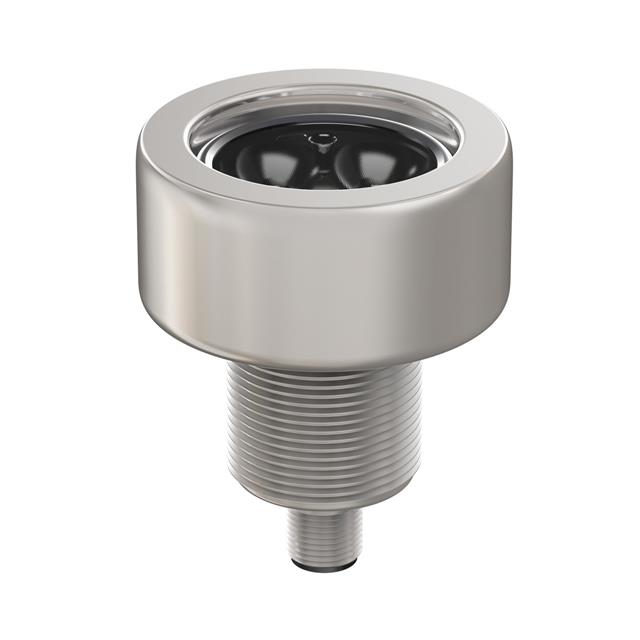

WORK LIGHT-50MM 316SS SPOT LIGHT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORK LIGHT-50MM 316SS SPOT LIGHT

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Approval Agency	Ingress Protection	Illumination Color	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Luminous Flux	Rated Life	Lens Type	Profile (W x H) [diameter]	Profile (W x H) [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
BANNER ENGINEERING WL50SWSSGL11Q	Stainless Steel	CE cULus	IP67 IP69K	Cool White	12 V	30 VDC	Connector (M12)	285 lm	50000 Hours	Clear Flat	2.2 in	56 mm	50 °C	-20 C
BANNER ENGINEERING WL50SWSSGL5Q	Stainless Steel	CE cULus	IP67 IP69K	Cool White	12 V	30 VDC	Connector (M12)	295 lm	50000 Hours	Clear Flat	2.2 in	56 mm	50 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 455.00
Newark	Each	1	$ 472.00

General part information

WORK LIGHT-50MM 316SS SPOT LIGHT

Technical documentation and resources
