Q-150K-3/8-01-SS50M

Active

Qualtek

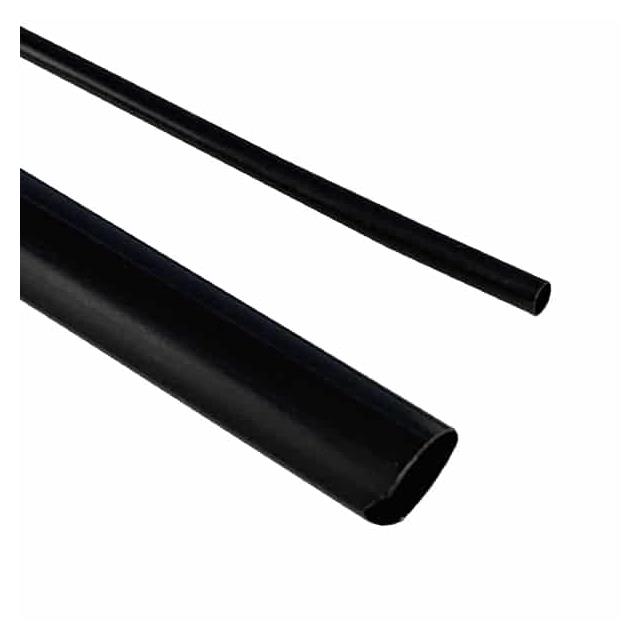

HEATSHRINK 3/8"-50M BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Part Numbering Guide

Q-150K-3/8-01-SS50M

Active

Qualtek

HEATSHRINK 3/8"-50M BLACK

Deep-Dive with AI

DocumentsDatasheet Part Numbering Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-150K-3/8-01-SS50M

Color	Black
Features	Solvent Resistant, Flame Retardant, Abrasion Resistant, Cut-Through Resistant, Chemical Resistant
Inner Diameter - Recovered [diameter]	4.75 mm
Inner Diameter - Recovered [diameter]	0.187 in
Inner Diameter - Supplied [diameter]	0.375 in
Inner Diameter - Supplied [diameter]	9.53 mm
Length	164 ft
Length	50 m
Material	Polyvinylidene Fluoride (PVDF)
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.3 mm
Recovered Wall Thickness	0.012 in
Shelf Life	144 Months
Shrink Temperature	135 C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Q-150K Series

Part	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Color	Shrink Temperature	Material	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Length	Shelf Life	Features	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]
Qualtek Q-150K-1/8-02-QB6IN-20	Tubing Flexible	1.57 mm	0.062 in	-55 °C	150 °C	0.01 in	0.25 mm	Clear	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	3.18 mm	0.125 "	-50 °F -10 °C	40 °C	152.4 mm	6 "	0.5 '	144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant
Qualtek Q-150K-1/8-01-SS200M	Tubing Flexible	1.57 mm	0.062 in	-55 °C	150 °C	0.01 in	0.25 mm	Black	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	3.18 mm	0.125 "	-50 °F -10 °C	40 °C	200 m			144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	656.2 ft
Qualtek Q-150K-3/32-02-QB6IN-24	Tubing Flexible	1.24 mm	0.049 in	-55 °C	150 °C	0.01 in	0.25 mm	Clear	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	0.093 in		-50 °F -10 °C	40 °C	152.4 mm	6 "	0.5 '	144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant		2.36 mm
Qualtek Q-150K-3/64-01-QB6IN-32	Tubing Flexible	0.023 in		-55 °C	150 °C	0.01 in	0.25 mm	Black	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	1.17 mm	0.046 in	-50 °F -10 °C	40 °C	152.4 mm	6 "	0.5 '	144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant			0.58 mm
Qualtek Q-150K-3/64-02-QB48IN-25	Tubing Flexible	0.023 in		-55 °C	150 °C	0.01 in	0.25 mm	Clear	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	1.17 mm	0.046 in	-50 °F -10 °C	40 °C				144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant			0.58 mm	1.22 m	4 ft
Qualtek Q-150K-3/8-01-SS50M	Tubing Flexible	4.75 mm	0.187 in	-55 °C	150 °C	0.012 in	0.3 mm	Black	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	9.53 mm	0.375 in	-50 °F -10 °C	40 °C	50 m			144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	164 ft
Qualtek Q-150K-3/8-02-SS50M	Tubing Flexible	4.75 mm	0.187 in	-55 °C	150 °C	0.012 in	0.3 mm	Clear	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	9.53 mm	0.375 in	-50 °F -10 °C	40 °C	50 m			144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	164 ft
Qualtek Q-150K-1/16-01-SS200M	Tubing Flexible	0.79 mm	0.031 in	-55 °C	150 °C	0.01 in	0.25 mm	Black	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	1.6 mm	0.063 in	-50 °F -10 °C	40 °C	200 m			144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	656.2 ft
Qualtek Q-150K-3/16-02-QB48IN-25	Tubing Flexible	2.41 mm	0.095 in	-55 °C	150 °C	0.01 in	0.25 mm	Clear	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	4.75 mm	0.187 in	-50 °F -10 °C	40 °C				144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant				1.22 m	4 ft
Qualtek Q-150K-3/64-02-QB6IN-32	Tubing Flexible	0.023 in		-55 °C	150 °C	0.01 in	0.25 mm	Clear	135 C	Polyvinylidene Fluoride (PVDF)	2 to 1	1.17 mm	0.046 in	-50 F	104 F	152.4 mm	6 "	0.5 '	144 Months	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant			0.58 mm			-10 C	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 3.52

Description

General part information

Q-150K Series

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Black 164.0' (50.0m)
