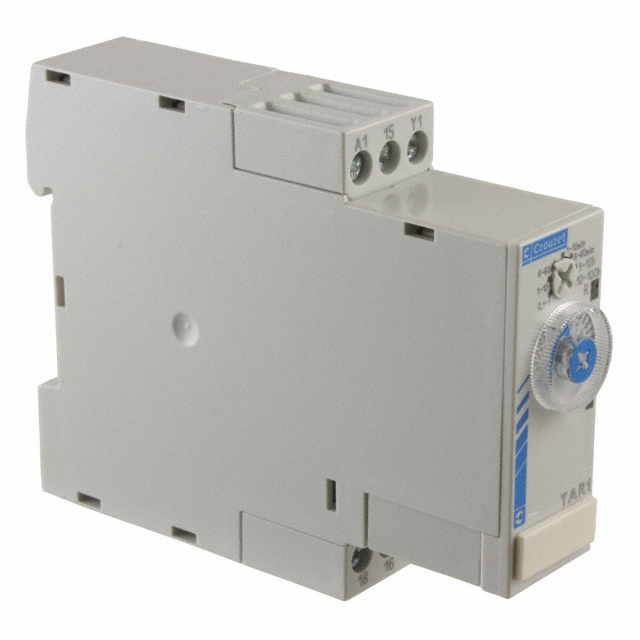

88865115

Obsolete

Crouzet

RELAY TIME DELAY 100HR 10A 250V

Search across all available documentation for this part.

Obsolete

Crouzet

RELAY TIME DELAY 100HR 10A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	88865115

Contact Rating @ Voltage	250 VAC, 10 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.1 Sec
Function	On-Delay
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Delay Time [Max]	Delay Time [Min]	Relay Type	Timing Initiate Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Contact Rating @ Voltage	Termination Style	Timing Adjustment Method	Mounting Type
Crouzet 88865115	100 Hrs	0.1 Sec	Mechanical Relay	Input Voltage Trigger Signal	24 VAC	240 VAC	On-Delay	10 A 250 VAC	Screw Terminal	Hand Dial	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 100 Hrs Delay 10A @ 250VAC DIN Rail
