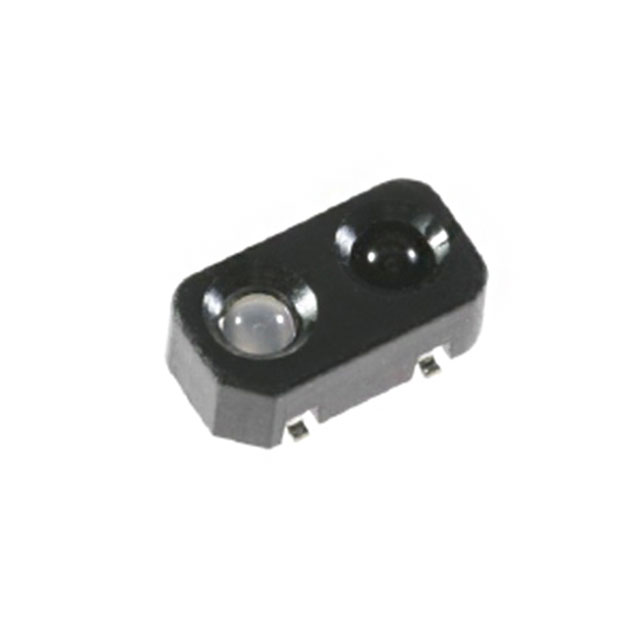

OPB733TR
ActiveTT Electronics/Optek Technology
SENSR OPTO TRANS 25.4MM REFL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPB733TR
ActiveTT Electronics/Optek Technology
SENSR OPTO TRANS 25.4MM REFL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB733TR |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-SMD |
| Response Time | 15 µs |
| Sensing Distance | 1 in |
| Sensing Distance | 25.4 mm |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.77 | |
| 100 | $ 3.56 | |||
| 250 | $ 3.42 | |||
| Digi-Reel® | 1 | $ 3.77 | ||
| 100 | $ 3.56 | |||
| 250 | $ 3.42 | |||
| Tape & Reel (TR) | 500 | $ 3.31 | ||
| 1000 | $ 3.19 | |||
| 2500 | $ 3.07 | |||
Description
General part information
OPB733 Series
Reflective Optical Sensor 1" (25.4mm) 4-SMD
