CLU733-1210E1-273H5X3

Active

Citizen Finedevice Co Ltd

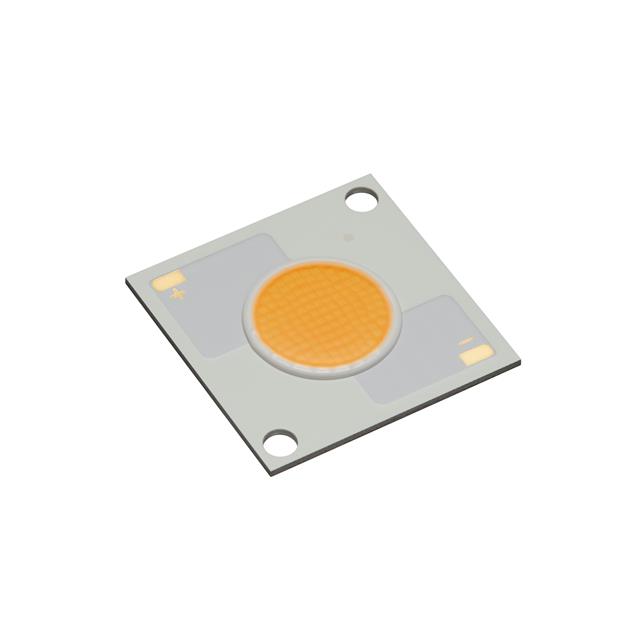

LED COB CLU733 WARM WHT SQ 2700K

Search across all available documentation for this part.

Active

Citizen Finedevice Co Ltd

LED COB CLU733 WARM WHT SQ 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	CLU733-1210E1-273H5X3

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	2.3 A
Current - Test	1.75 A
Features	With Connector
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13 mm
Lumens/Watt @ Current - Test	107 lm/W
Luminous Flux @ Current/Temperature	7331 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	36.5 V

Part	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Features	Type	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Temperature - Test	Configuration	Lens Type	Luminous Flux @ Current/Temperature	Current - Test	CRI (Color Rendering Index)	Color
Citizen Finedevice Co Ltd CLU733-1210E1-273H5X3	107 lm/W	36.5 V	1.4 mm	With Connector	Chip On Board (COB)	2.3 A	13 mm	28 mm	28 mm	2700 K	85 °C	Square	Flat	7331 lm	1.75 A	90	Warm White
Citizen Finedevice Co Ltd CLU733-1210E1-353H5X3	120 lm/W	36.5 V	1.4 mm	With Connector	Chip On Board (COB)	2.3 A	13 mm	28 mm	28 mm	3500 K	85 °C	Square	Flat	8227 lm	1.75 A	90	Warm White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU733 White, Warm Square
