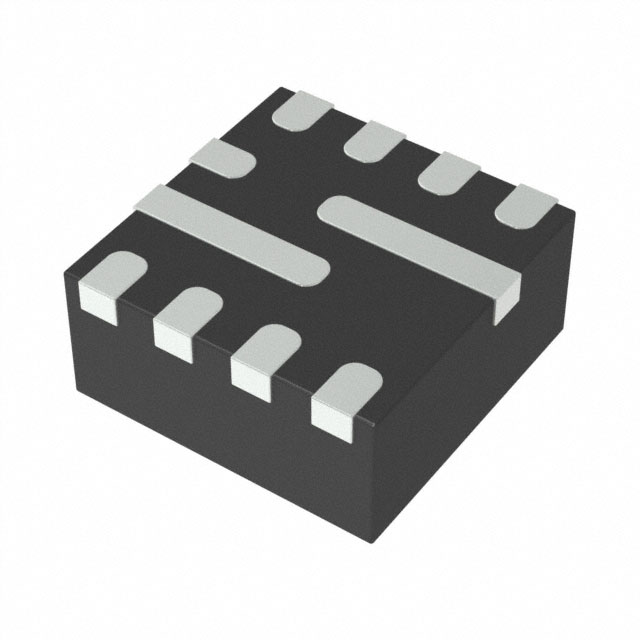

MP2384CGG-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 4A 11QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP2384CGG-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 4A 11QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP2384CGG-Z |
|---|---|
| Current - Output | 4 A |
| Frequency - Switching | 700 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 11-VFQFN |
| Supplier Device Package | 11-QFN (2x2) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 24 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 13 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| 2500 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.69 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| 2500 | $ 0.86 | |||
| Tape & Reel (TR) | 5000 | $ 0.83 | ||
| 10000 | $ 0.80 | |||
Description
General part information
MP2384 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 4A 11-VFQFN
