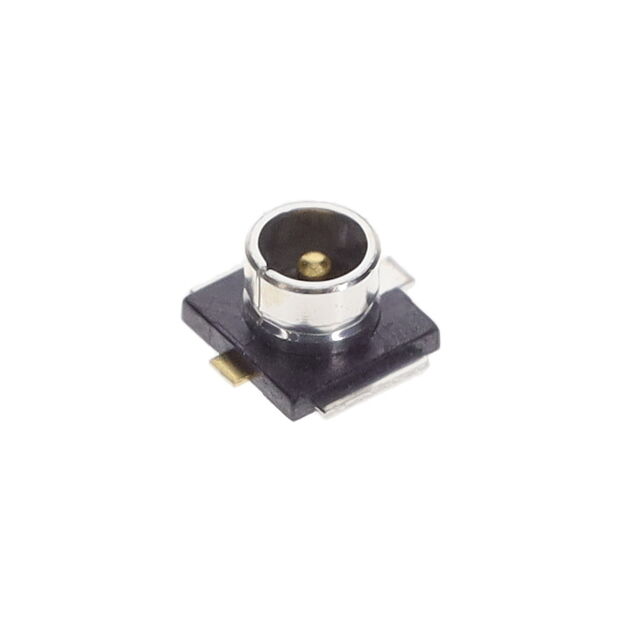

E.FL-R-SMT(10)
ActiveHirose Electric USA, Inc.
CONN E.FL RCPT SMD STR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E.FL-R-SMT(10)
ActiveHirose Electric USA, Inc.
CONN E.FL RCPT SMD STR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E.FL-R-SMT(10) |
|---|---|
| Body Finish | Gold |
| Body Material | Phosphor Bronze |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | E.FL |
| Connector Type | Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 50 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.55 | |
| 10 | $ 1.35 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.21 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.55 | ||
| 10 | $ 1.35 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.21 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.86 | |||
| Tape & Reel (TR) | 2500 | $ 0.81 | ||
| 5000 | $ 0.77 | |||
| 12500 | $ 0.75 | |||
Description
General part information
E.FL-R Series
E.FL Connector Receptacle 50 Ohms Surface Mount Solder
