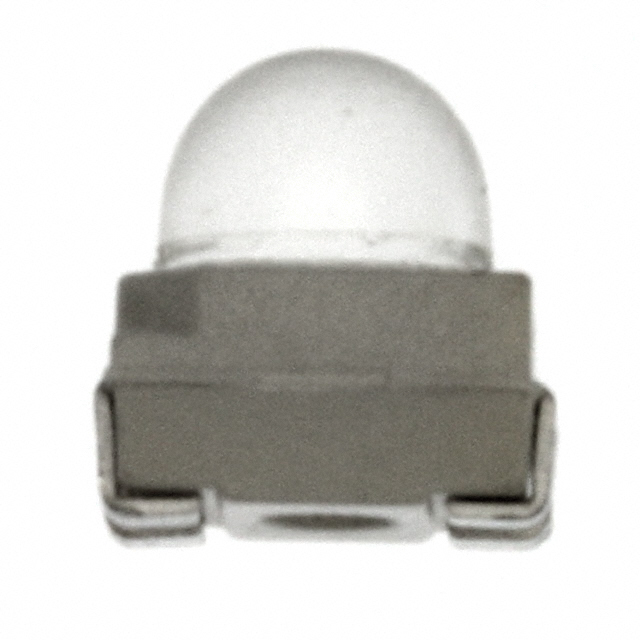

LA E63F-EAFA-24-3B5A-Z
Activeams-OSRAM USA INC.
LED AMBER CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
LA E63F-EAFA-24-3B5A-Z
Activeams-OSRAM USA INC.
LED AMBER CLEAR 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LA E63F-EAFA-24-3B5A-Z |
|---|---|
| Color | Amber |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] [z] | 3.8 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.6 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 8650 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength - Dominant | 617 nm |
| Wavelength - Peak | 624 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LAE63F Series
Amber 617nm LED Indication - Discrete 2.15V 4-PLCC
