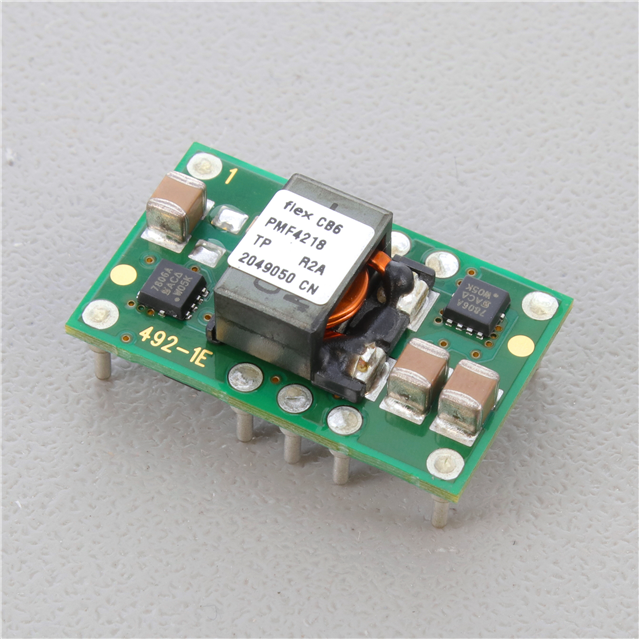

PMF4218TP

Obsolete

Flex Power Modules

DC DC CONVERTER 0.8-2.5V 25W

Search across all available documentation for this part.

Obsolete

Flex Power Modules

DC DC CONVERTER 0.8-2.5V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	PMF4218TP

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	10 A
Efficiency	94.1 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-DIP Module
Power (Watts)	25 W
Size / Dimension [x]	25.3 mm
Size / Dimension [x]	0.99 in
Size / Dimension [y]	0.62 "
Size / Dimension [y]	15.8 mm
Size / Dimension [z]	9 mm
Size / Dimension [z]	0.35 "
Standard Number	62368-1
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	3.65 V
Voltage - Input (Min) [Min]	2.95 V
Voltage - Output 1 [Max]	2.5 V
Voltage - Output 1 [Min]	0.8 V

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Approval Agency	Applications	Features	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Control Features	Voltage - Input (Max) [Max]	Type	Mounting Type	Efficiency
Flex Power Modules PMF4218TP	2.5 V	0.8 V	10 A	2.95 V	1	85 °C	-40 °C	10-DIP Module	CB CSA IEC TUV UL	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	62368-1	25.3 mm	9 mm	0.99 in	0.35 "	0.62 "	15.8 mm	25 W	Active Low Enable	3.65 V	Non-Isolated PoL Module	Through Hole	94.1 %
Flex Power Modules PMF4218TSR	2.5 V	0.8 V	10 A	2.95 V	1	85 °C	-40 °C	10-SMD Module	CB CSA IEC TUV UL	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	62368-1	25.3 mm	9 mm	0.99 in	0.35 "	0.62 "	15.8 mm	25 W	Active Low Enable	3.65 V	Non-Isolated PoL Module	Surface Mount	94.1 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 10A 2.95V - 3.65V Input
