RTQ2131BGQW-QA
ActiveRichtek USA Inc.
IC REG BUCK ADJ 1A 10WDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ2131BGQW-QA
ActiveRichtek USA Inc.
IC REG BUCK ADJ 1A 10WDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ2131BGQW-QA |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 2.1 MHz |
| Function | Step-Down |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

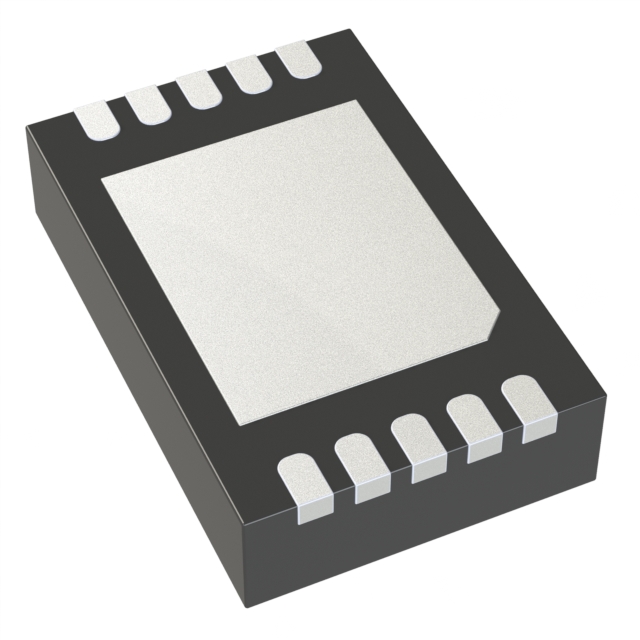

| Package / Case | 10-WFDFN Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 10-WDFN (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output (Max) | 36 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.72 | |
| 10 | $ 3.14 | |||
| 25 | $ 2.73 | |||
| 100 | $ 2.27 | |||
| 250 | $ 2.05 | |||
| 500 | $ 1.91 | |||
| Digi-Reel® | 1 | $ 4.72 | ||
| 10 | $ 3.14 | |||
| 25 | $ 2.73 | |||
| 100 | $ 2.27 | |||
| 250 | $ 2.05 | |||
| 500 | $ 1.91 | |||
| Tape & Reel (TR) | 1500 | $ 1.00 | ||
| 3000 | $ 0.94 | |||
| 4500 | $ 0.91 | |||
| 7500 | $ 0.88 | |||
| 10500 | $ 0.87 | |||
Description
General part information
RTQ2131 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 10-WFDFN Exposed Pad
