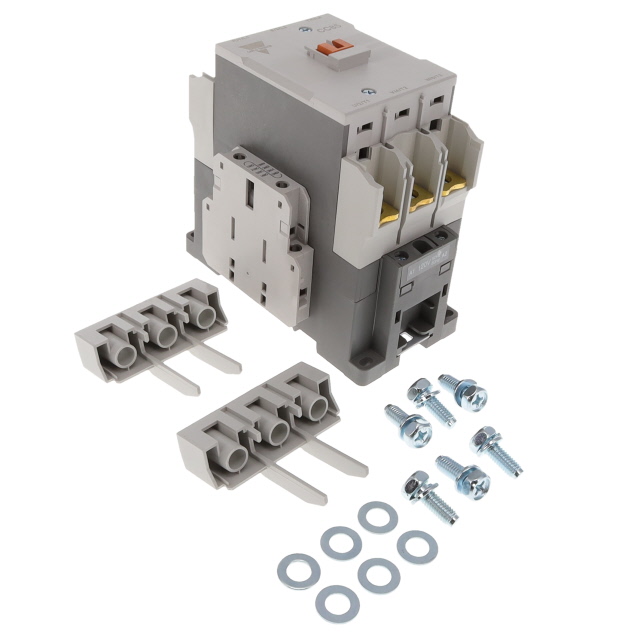

CC85SA120
ActiveCARLO GAVAZZI
3P CONT S 120V 50/60HZ 2NO2NC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC85SA120
ActiveCARLO GAVAZZI
3P CONT S 120V 50/60HZ 2NO2NC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC85SA120 |
|---|---|
| Coil Voltage | 120 VAC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 85 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -5 °C |
| Release Time | 10 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 202.35 | |
| 10 | $ 192.23 | |||
| 50 | $ 182.12 | |||
Description
General part information
CC85SA Series
3P CONT S 120V 50/60HZ 2NO2NC
