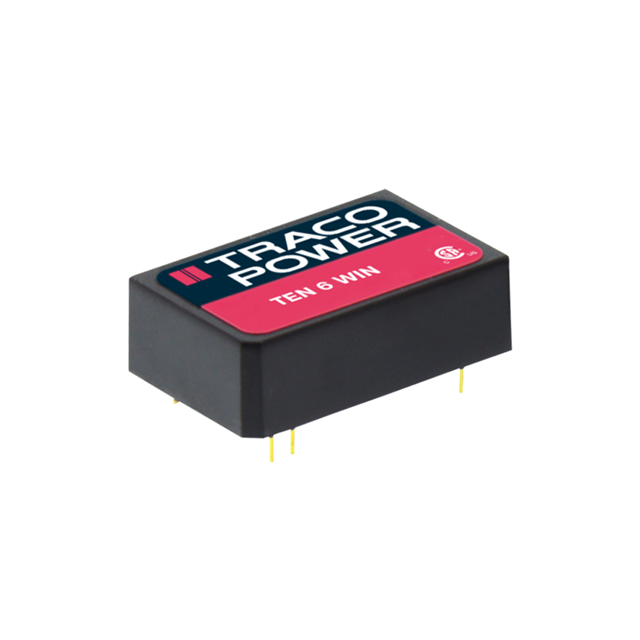

TEN 6-2421WIN

Active

Traco Power

DC DC CONVERTER +/-5V 5W

Deep-Dive with AI

DocumentsDatasheet TEN 6WIN Certs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 6-2421WIN

Applications	ITE (Commercial)
Current - Output (Max)	500 mA
Current - Output (Max)	500 mA
Efficiency	80 %
Features	OCP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 8 Leads
Power (Watts)	5 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

TEN 6 Series

Part	Efficiency	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Features	Voltage - Isolation	Power (Watts)	Type	Current - Output (Max)	Current - Output (Max)	Applications	Voltage - Output 2	Number of Outputs	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TEN 6-4822N	84 %	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	75 V	Through Hole	36 V	85 °C	-40 °C	24-DIP Module 8 Leads	OCP SCP	1.5 kV	6 W	Isolated Module	250 mA	250 mA	ITE (Commercial)	-12 V	2
Traco Power TEN 6-2423N	84 %	15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	36 V	Through Hole	18 V	85 °C	-40 °C	24-DIP Module 8 Leads	OCP SCP	1.5 kV	6 W	Isolated Module			ITE (Commercial)	-15 V	2
Traco Power TEN 6-2421WIN	80 %	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	36 V	Through Hole	9 V	85 °C	-40 °C	24-DIP Module 8 Leads	OCP SCP	1.5 kV	5 W	Isolated Module	500 mA		ITE (Commercial)	-5 V	2	500 mA
Traco Power TEN 6-4822WIN	84 %	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	75 V	Through Hole	18 V	85 °C	-40 °C	24-DIP Module 8 Leads	OCP SCP	1.5 kV	6 W	Isolated Module	250 mA	250 mA	ITE (Commercial)	-12 V	2
Traco Power TEN 6-4810WIN	77 %	3.3 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	75 V	Through Hole	18 V	85 °C	-40 °C	24-DIP Module 7 Leads	OCP SCP	1.5 kV	4 W	Isolated Module			ITE (Commercial)		1		1.2 A
Traco Power TEN 6-2410WIN	77 %	3.3 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	36 V	Through Hole	9 V	85 °C	-40 °C	24-DIP Module 7 Leads	OCP SCP	1.5 kV	4 W	Isolated Module			ITE (Commercial)		1		1.2 A
Traco Power TEN 6-4815WIN	84 %	24 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	75 V	Through Hole	18 V	85 °C	-40 °C	24-DIP Module 7 Leads	OCP SCP	1.5 kV	6 W	Isolated Module			ITE (Commercial)		1		250 mA
