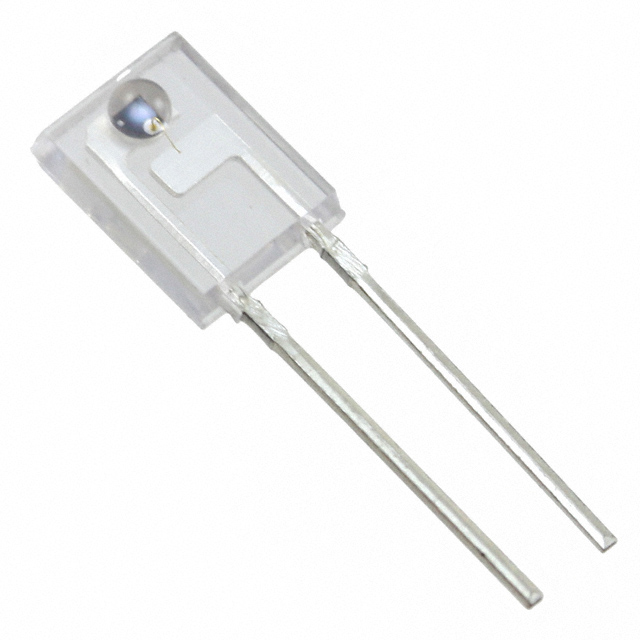

PT908-7C-F

Active

Everlight Electronics Co Ltd

PHOTO TRANSISTOR, 940NM, ROHS COMPLIANT, PLASTIC PACKAGE-2

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

PHOTO TRANSISTOR, 940NM, ROHS COMPLIANT, PLASTIC PACKAGE-2

Technical Specifications

Parameters and characteristics for this part

Specification	PT908-7C-F

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Side View
Package / Case	Radial, Side View
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation	Package / Case	Mounting Type	Current - Dark (Id) (Max) [Max]
Everlight Electronics Co Ltd PT908-7C-F	-25 °C	85 °C	20 mA	940 nm	30 V	Side View	Radial Side View	Through Hole	100 nA
Everlight Electronics Co Ltd PT908-7B-F	-25 °C	85 °C	20 mA	940 nm	30 V	Side View	Radial Side View	Through Hole	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Side View Radial, Side View
