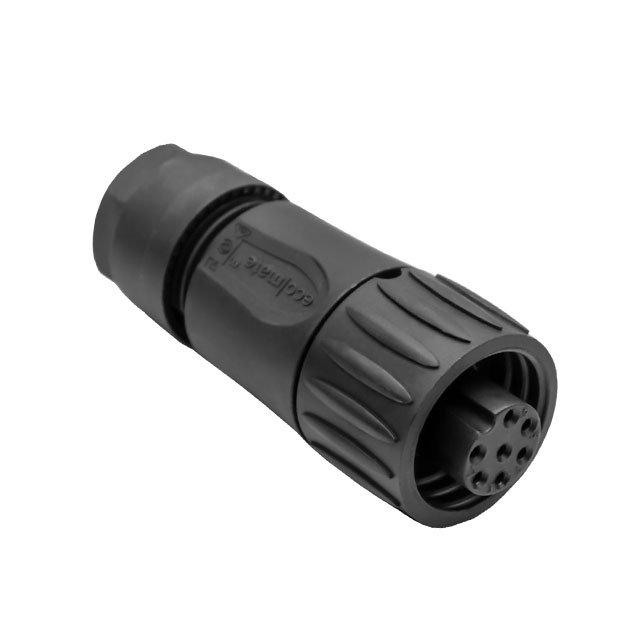

C01630D00611012
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 7P SILVER SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C01630D00611012
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 7P SILVER SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C01630D00611012 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 12 A |
| Features | Cable Clamp, Strain Relief |
| Ingress Protection | IP67, IP65 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Termination | Solder |
| Voltage Rating | 250 VDC |
C01630D006 Series
| Part | Features | Orientation | Current Rating (Amps) | Voltage Rating | Connector Type | Number of Positions | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish - Mating | Mounting Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Cable Clamp Strain Relief | Keyed | 12 A | 250 VDC | Female Sockets Plug | 7 | Plastic | 125 °C | -40 °C | Solder | Silver | Free Hanging (In-Line) | IP65 IP67 |
Amphenol Tuchel Industrial | Cable Clamp | Keyed | 12 A | 250 VDC | Female Sockets Plug | 7 | Plastic | 125 °C | -40 °C | Solder | Silver | Free Hanging (In-Line) | IP65 IP67 |
Amphenol Tuchel Industrial | Cable Clamp Strain Relief | Keyed | 12 A | 250 VDC | Female Sockets Plug | 7 | Plastic | 125 °C | -40 °C | Solder | Silver | Free Hanging (In-Line) | IP65 IP67 |
Amphenol Tuchel Industrial | Cable Clamp Strain Relief | Keyed | 12 A | 250 VDC | Female Sockets Plug | 7 | Plastic | 125 °C | -40 °C | Solder | Gold | Free Hanging (In-Line) | IP65 IP67 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.24 | |
| 10 | $ 14.95 | |||
| 25 | $ 14.16 | |||
| 50 | $ 13.96 | |||
| 100 | $ 12.32 | |||
| 250 | $ 11.50 | |||
| 500 | $ 11.25 | |||
Description
General part information
C01630D006 Series
7 Position Circular Connector Plug, Female Sockets Solder
