UE27AC54100
ActiveAmphenol ICC (Commercial Products)

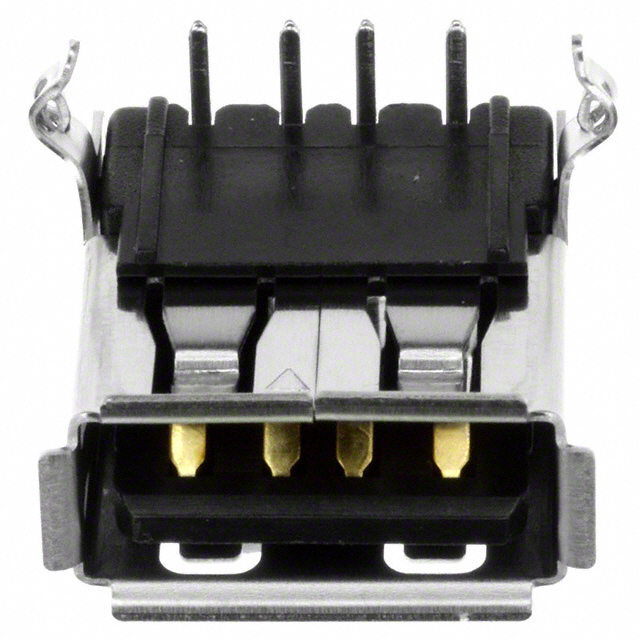

CONN RCPT USB2.0 TYPEA 4POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UE27AC54100
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB2.0 TYPEA 4POS R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UE27AC54100 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.75 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.61 | |||
| 40 | $ 0.59 | |||
| 120 | $ 0.57 | |||
| 240 | $ 0.52 | |||
| 480 | $ 0.47 | |||
| 960 | $ 0.41 | |||
| 2400 | $ 0.37 | |||
Description
General part information
UE27 Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
