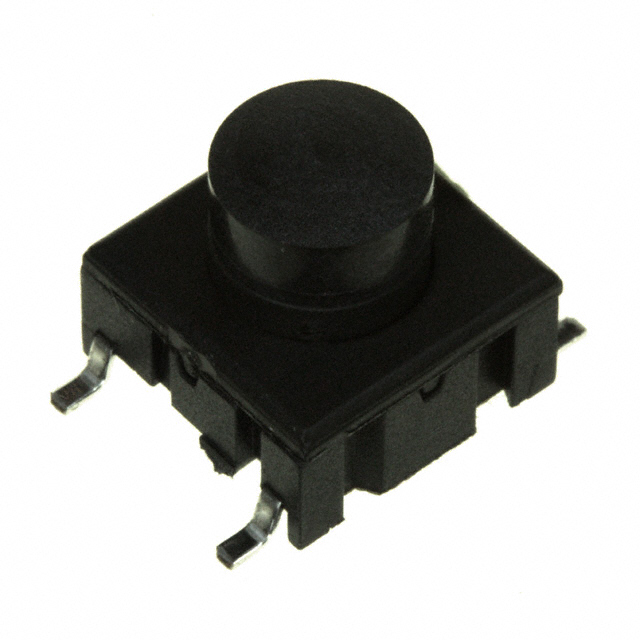

3ESH9-09.5

Active

MEC Switches

50MA SPST 10000000 TIMES 24V 3N TACTILE SWITCHES ROHS

Search across all available documentation for this part.

Active

MEC Switches

50MA SPST 10000000 TIMES 24V 3N TACTILE SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	3ESH9-09.5

Actuator Height off PCB, Vertical	9.5 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Surface Mount
Operating Force	300 gf
Operating Temperature [Max]	160 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	Gull Wing

Part	Circuit	Termination Style	Actuator Material	Illumination	Mounting Type	Mechanical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical	Operating Force	Switch Travel	Outline [x]	Outline [y]	Actuator Orientation	Contact Rating @ Voltage	Actuator Type	Ingress Protection	Features	Actuator Height off PCB, Vertical [z]
MEC Switches 3ESH9-15.0	SPST-NO	Gull Wing	Polyphenylene Sulfide (PPS)	Non-Illuminated	Surface Mount	10000000 Cycles	Off-Mom	-40 °C	160 °C	15 mm	300 gf	1 mm	10.1 mm	10.1 mm	Top Actuated	0.05 A 24 VDC	Standard	IP67 - Dust Tight Waterproof	Sealed - Flux Protection
MEC Switches 3ESH9-12.0	SPST-NO	Gull Wing	Polyphenylene Sulfide (PPS)	Non-Illuminated	Surface Mount	10000000 Cycles	Off-Mom	-40 °C	160 °C		300 gf	1 mm	10.1 mm	10.1 mm	Top Actuated	0.05 A 24 VDC	Standard	IP67 - Dust Tight Waterproof	Sealed - Flux Protection	12 mm
MEC Switches 3ESH9-09.5	SPST-NO	Gull Wing	Polyphenylene Sulfide (PPS)	Non-Illuminated	Surface Mount	10000000 Cycles	Off-Mom	-40 °C	160 °C	9.5 mm	300 gf	1 mm	10.1 mm	10.1 mm	Top Actuated	0.05 A 24 VDC	Standard	IP67 - Dust Tight Waterproof	Sealed - Flux Protection
MEC Switches 3ESH9-08.0	SPST-NO	Gull Wing	Polyphenylene Sulfide (PPS)	Non-Illuminated	Surface Mount	10000000 Cycles	Off-Mom	-40 °C	160 °C		300 gf	1 mm	10.1 mm	10.1 mm	Top Actuated	0.05 A 24 VDC	Standard	IP67 - Dust Tight Waterproof	Sealed - Flux Protection	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
