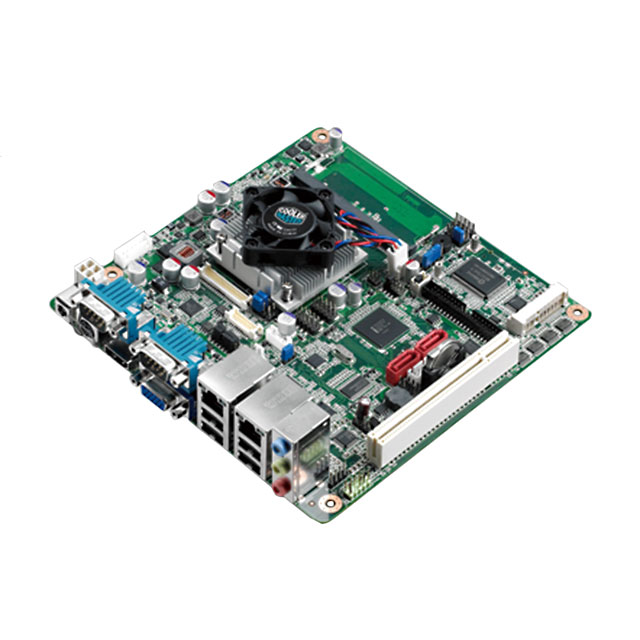

AIMB-214U-S6A1E
ObsoleteAdvantech Corp
SBC 1.6GHZ 2 CORE 4GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIMB-214U-S6A1E
ObsoleteAdvantech Corp
SBC 1.6GHZ 2 CORE 4GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-214U-S6A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Atom N2600 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Form Factor | mini-ITX |
| Number of Cores | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 17.8 W |
| RAM Capacity/Installed | 4 GB, 0 GB |
| RS-232 (422, 485) | 6 |
| Size / Dimension [x] | 169.92 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 6.69 in |
| Size / Dimension [y] | 169.92 mm |
| Speed | 1.6 GHz |
| Storage Interface | SATA 2.0 (2) |
| USB | USB 2.0 (6) |
| Video Outputs | HDMI, CRT, VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AIMB-214 Series
Single Board Computer 1.6GHz 2 Core 4GB/0GB RAM Intel Atom N2600
