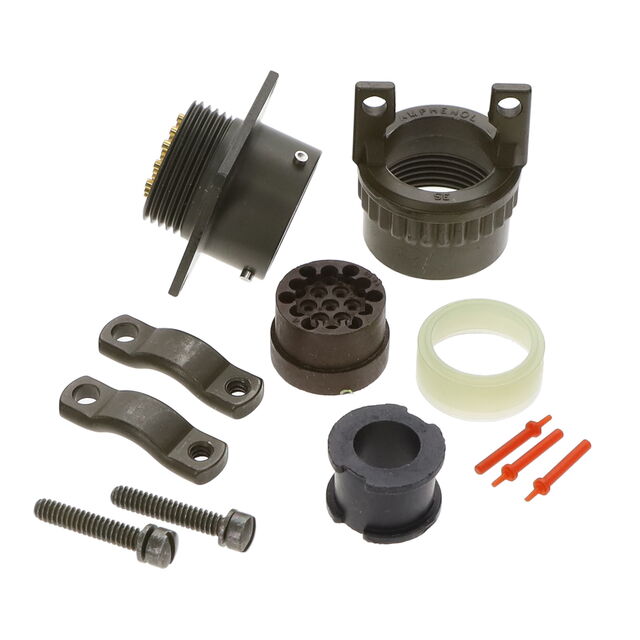

MS3110F14-19S - MS3110F14-19S

MS3110F14-19S

Active
Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3110F14-19S
ApplicationsCommunication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
ColorOlive Drab
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)7.5 A
Fastening TypeBayonet Lock
FeaturesCable Clamp, Backshell
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureFlange
Number of Positions19
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-26482 Series I
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum
Shell Size - Insert [Max] [custom]19
Shell Size - Insert [Min] [custom]14
ShieldingUnshielded
Voltage Rating600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 127.06
10$ 116.59
25$ 112.11
50$ 108.37

Description

General part information

MS3110F14 Series

19 Position Circular Connector Receptacle, Female Sockets Solder Cup
