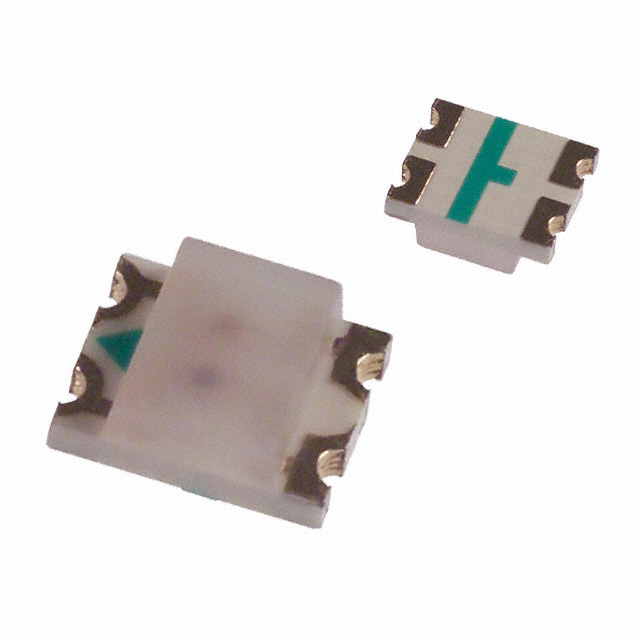

HSMF-C155
ActiveBroadcom Limited
LED GREEN/RED DIFF CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMF-C155
ActiveBroadcom Limited
LED GREEN/RED DIFF CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C155 |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | White |
| Lens Size [x] | 2.06 mm |
| Lens Size [y] | 2.7 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 15 mcd |
| Millicandela Rating [custom] | 10 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Supplier Device Package | Chip LED |
| Viewing Angle | 170 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Wavelength - Dominant [custom] | 626 nm, 572 nm |
| Wavelength - Peak | 630 nm, 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.41 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.17 | |||
| 9000 | $ 0.16 | |||
| 15000 | $ 0.16 | |||
| 21000 | $ 0.15 | |||
| 30000 | $ 0.15 | |||
Description
General part information
HSMF-C155 Series
Green, Red 572nm Green, 626nm Red LED Indication - Discrete 2.2V Green, 2.1V Red 1210 (3225 Metric)
