862-10-004-00-180000

Active

Mill-Max Manufacturing Corp.

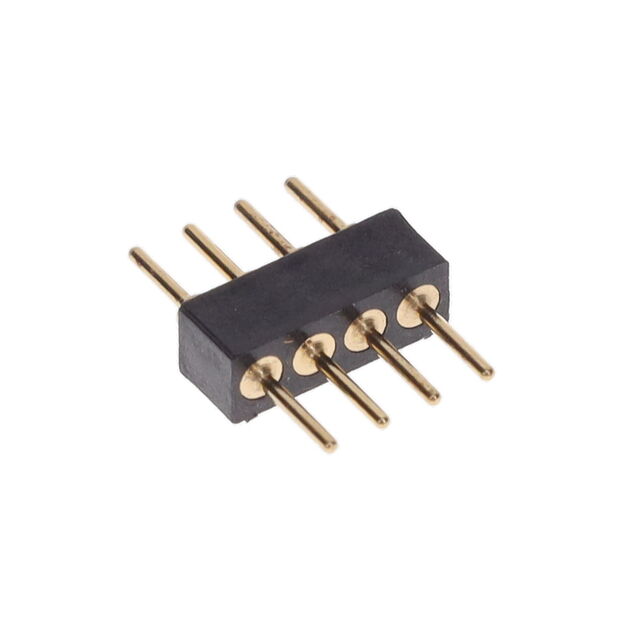

CONN HEADER VERT 4POS 1.78MM

Deep-Dive with AI

Search across all available documentation for this part.

862-10-004-00-180000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 4POS 1.78MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	862-10-004-00-180000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	3.61 mm
Contact Length - Mating	0.142 in
Contact Length - Post	0.117 in
Contact Length - Post	2.97 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.399 "
Overall Contact Length	10.13 mm
Pitch - Mating	0.07 in
Pitch - Mating	1.78 mm
Shrouding	Unshrouded
Termination	Solder

862-10 Series

Part	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Type	Shrouding	Termination	Connector Type	Contact Shape	Number of Positions	Fastening Type	Number of Positions Loaded	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Mill-Max Manufacturing Corp. 862-10-004-30-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Surface Mount	Male Pin	Unshrouded	Solder	Header	Circular	4	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm
Mill-Max Manufacturing Corp. 862-10-014-00-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Through Hole	Male Pin	Unshrouded	Solder	Header	Circular	14	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm	0.117 in	2.97 mm	0.399 "	10.13 mm
Mill-Max Manufacturing Corp. 862-10-017-00-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Through Hole	Male Pin	Unshrouded	Solder	Header	Circular		Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm	0.117 in	2.97 mm	0.399 "	10.13 mm
Mill-Max Manufacturing Corp. 862-10-019-00-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Through Hole	Male Pin	Unshrouded	Solder	Header	Circular	19	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm	0.117 in	2.97 mm	0.399 "	10.13 mm
Mill-Max Manufacturing Corp. 862-10-002-00-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Through Hole	Male Pin	Unshrouded	Solder	Header	Circular	2	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm	0.117 in	2.97 mm	0.399 "	10.13 mm
Mill-Max Manufacturing Corp. 862-10-004-00-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Through Hole	Male Pin	Unshrouded	Solder	Header	Circular	4	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm	0.117 in	2.97 mm	0.399 "	10.13 mm
Mill-Max Manufacturing Corp. 862-10-007-30-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Surface Mount	Male Pin	Unshrouded	Solder	Header	Circular	7	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm
Mill-Max Manufacturing Corp. 862-10-014-30-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Surface Mount	Male Pin	Unshrouded	Solder	Header	Circular	14	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm
Mill-Max Manufacturing Corp. 862-10-009-30-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Surface Mount	Male Pin	Unshrouded	Solder	Header	Circular	9	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm
Mill-Max Manufacturing Corp. 862-10-010-30-180000	Polycyclohexylenedimethylene Terephthalate (PCT)	0.07 in	1.78 mm	Surface Mount	Male Pin	Unshrouded	Solder	Header	Circular	10	Push-Pull	All	Brass Alloy	10 çin	0.25 çm	Black	Gold	1	Gold	3.61 mm	0.142 in	10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.16
		70	$ 13.22
		140	$ 12.49
		560	$ 10.65

Description

General part information

862-10 Series

Connector Header Through Hole 4 position 0.070" (1.78mm)
