5123.2000.0

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	5123.2000.0

Accomodates a Fuse	False
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	1 A
Current Rating - Filter	1 A
Features	Front Side Mount, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.4 mm
Panel Cutout Dimensions [y]	21.5 mm
Panel Thickness [Max]	0.079 "
Panel Thickness [Max]	2 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Voltage Rating - Appliance Inlet	Filter Type	Accomodates a Fuse	Features	Mounting Type	Ingress Protection	Material Flammability Rating	Current Rating - Appliance Inlet	Approval Agency	Current Rating - Filter	Termination	Termination	Termination	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
SCHURTER Inc. 5123.2000.0	Receptacle Male Blades - Module	0.079 "	0.031 "	2 mm	0.79 mm	250 VAC	Filtered (EMI RFI) - Commercial		Front Side Mount Shielded	Panel Mount Snap-In	IP40	UL94 V-0	1 A	cURus ENEC	1 A	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	21.5 mm	29.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 15.32

General part information

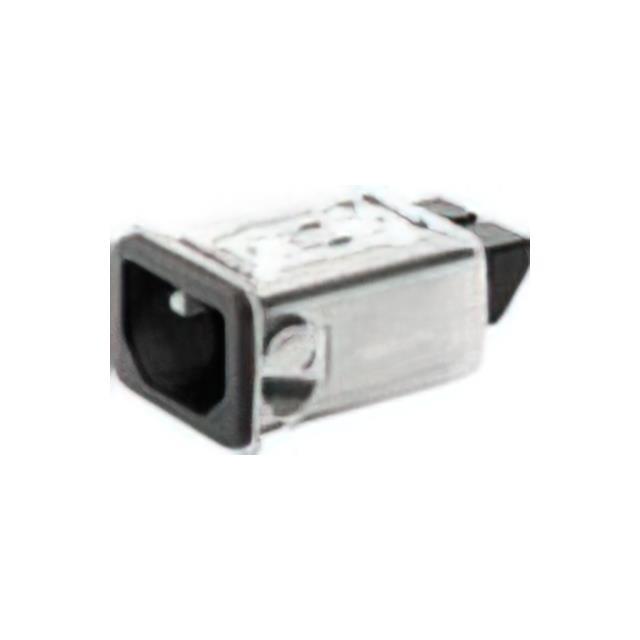

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
