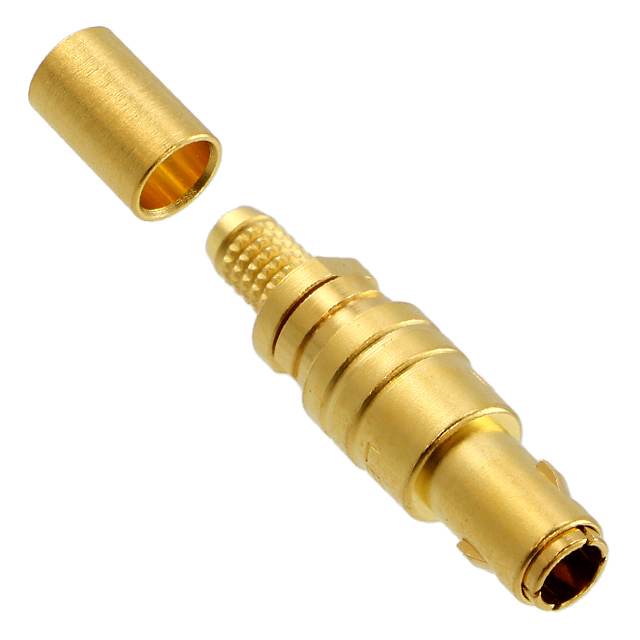

FFS.01.250.DLAE31
ActiveLEMO
CONN MINI COAX PLUG STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
FFS.01.250.DLAE31
ActiveLEMO
CONN MINI COAX PLUG STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFS.01.250.DLAE31 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-174, 179B, 316, 187A, 188A |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Miniature Coaxial |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Ingress Protection | IP50 |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 230 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.09 | |
| 10 | $ 16.54 | |||
| 25 | $ 15.68 | |||
| 50 | $ 15.45 | |||
| 100 | $ 13.63 | |||
| 250 | $ 12.73 | |||
| 500 | $ 12.45 | |||
Description
General part information
FFS.01 Series
Miniature Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
