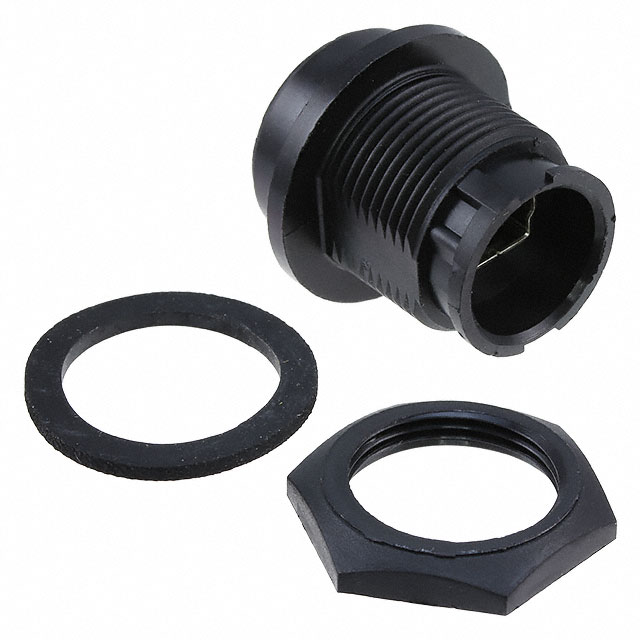

DCP-USBNB-MNSC

Active

Conxall/Switchcraft

CONN RCPT USB2.0 MINI B PNL MNT

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT USB2.0 MINI B PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DCP-USBNB-MNSC

Connector Type	USB - mini B
Contact Finish	Gold
Features	Circular Bayonet Coupling
Gender	Receptacle
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Contacts	5
Number of Ports	1
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	PC Board

Part	Mounting Type	Convert To (Adapter End)	Convert From (Adapter End)	Number of Ports	Shell/Shielding Material	Number of Contacts	Mating Cycles	Specifications	Shielding	Features	Gender	Contact Finish	Ingress Protection	Mounting Feature	Insulation Color	Termination	Material Flammability Rating	Connector Type
Conxall/Switchcraft DCP-USBNB-USBN	Panel Mount Bulkhead - Rear Side Nut	USB - mini B Receptacle	USB - mini B Receptacle
Conxall/Switchcraft DCP-USBNB-MNSC				1	Copper Alloy	5	500	USB 2.0	Shielded	Circular Bayonet Coupling	Receptacle	Gold	IP67/IP68 - Dust Tight Waterproof	Bulkhead - Front Side Nut	Black	PC Board	UL94 V-0	USB - mini B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - mini B USB 2.0 Receptacle Connector 5 Position Panel Mount
