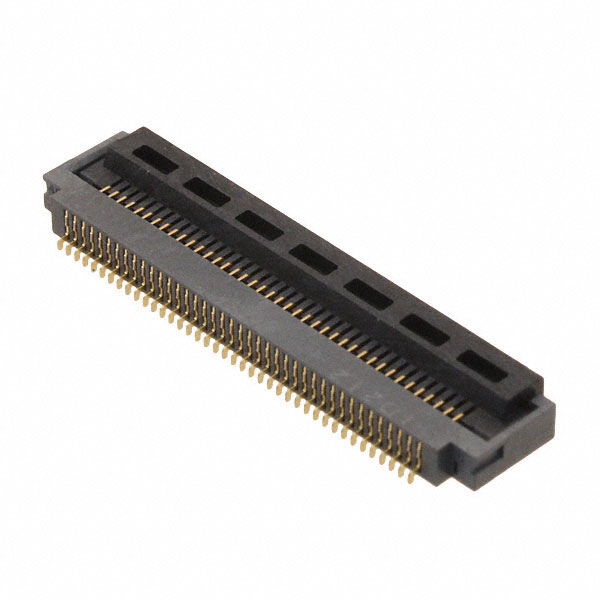

FH41-40S-0.5SH(05)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 40POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH41 Series

FH41-40S-0.5SH(05)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 40POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet FH41 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH41-40S-0.5SH(05)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	0.098 in
Height Above Board	2.5 mm
Housing Color	Gray
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH41 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Voltage Rating	Height Above Board	Height Above Board	Locking Feature	Material Flammability Rating	Termination	Mating Cycles	Actuator Color	FFC, FCB Thickness	Connector/Contact Type	Contact Finish	Actuator Material	Features	Flat Flex Type	Current Rating (Amps)	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Housing Material	Cable End Type	Pitch [x]	Pitch [x]	Number of Positions
Hirose Electric USA, Inc. FH41-40S-0.5SH(05)	1.25 Áin	0.03 Ám	Phosphor Bronze	50 V	0.098 in	2.5 mm	Backlock Flip Lock	UL94 V-0	Solder	20	Black	0.3 mm	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	FFC	0.5 A	Gray	-40 °C	105 ░C	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	0.5 mm	0.02 in	40
Hirose Electric USA, Inc. FH41-40S-0.5SH			Phosphor Bronze	50 V	0.098 in	2.5 mm	Backlock Flip Lock	UL94 V-0	Solder	20	Black	0.3 mm	Contacts Bottom		Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	FFC	0.5 A	Gray	-40 °C	105 ░C	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	0.5 mm	0.02 in	40
Hirose Electric USA, Inc. FH41-68S-0.5SH(28)	1.25 Áin	0.03 Ám		50 V	0.098 in	2.5 mm	Backlock Flip Lock	UL94 V-0	Solder	20	Black	0.3 mm	Contacts Bottom			Solder Retention	FFC	0.5 A	Gray	-40 °C	105 ░C	Surface Mount Right Angle		Tabbed	0.5 mm	0.02 in	68
Hirose Electric USA, Inc. FH41-31S-0.5SH(99)			Phosphor Bronze	50 V	0.098 in	2.5 mm	Backlock Flip Lock	UL94 V-0	Solder	20	Black	0.3 mm	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	FFC	0.5 A	Gray	-40 °C	105 ░C	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	0.5 mm	0.02 in	31
Hirose Electric USA, Inc. FH41-28S-0.5SH(05)	1.25 Áin	0.03 Ám	Phosphor Bronze	50 V	0.098 in	2.5 mm	Backlock Flip Lock	UL94 V-0	Solder	20	Black	0.3 mm	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	FFC	0.5 A	Gray	-40 °C	105 ░C	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	0.5 mm	0.02 in	28

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.85
		10	$ 2.59
		25	$ 2.45
		50	$ 2.40
		100	$ 2.28
		250	$ 2.00
		500	$ 1.94
		1000	$ 1.65
	Digi-Reel®	1	$ 2.85
		10	$ 2.59
		25	$ 2.45
		50	$ 2.40
		100	$ 2.28
		250	$ 2.00
		500	$ 1.94
		1000	$ 1.65
	Tape & Reel (TR)	2500	$ 1.43
		5000	$ 1.38

Description

General part information

FH41 Series

40 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
