ED365/4

Active

On Shore Technology Inc.

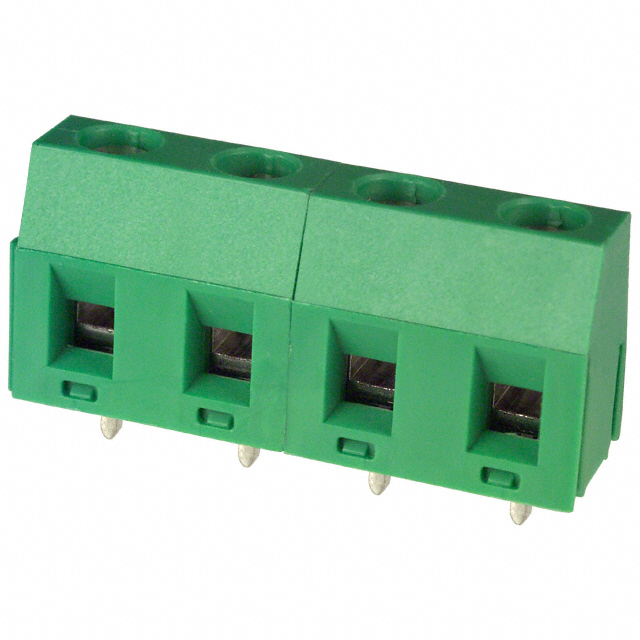

TERM BLK 4POS SIDE ENT 7.5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ED365/4

Active

On Shore Technology Inc.

TERM BLK 4POS SIDE ENT 7.5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED365/4

Clamp Material - Plating	Copper
Color	Green
Contact Material - Plating [custom]	Brass
Current	16 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Positions Per Level	4
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

ED365 Series

Part	Number of Levels	Current	Pitch [x]	Pitch [x]	Screw Thread	Mating Orientation	Color	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material - Plating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Termination	Clamp Material - Plating	Torque - Screw	Torque - Screw	Positions Per Level	Housing Material	Voltage
On Shore Technology Inc. ED365/3	1	16 A	0.295 in	7.5 mm	M3	Horizontal with Board	Green	Through Hole	12 AWG	22 AWG	Brass	-30 ░C	105 ░C	Screw - Rising Cage Clamp	Copper	4.4 Lb-In	0.5 Nm	3	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED365/2	1	16 A	0.295 in	7.5 mm	M3	Horizontal with Board	Green	Through Hole	12 AWG	22 AWG	Brass	-30 ░C	105 ░C	Screw - Rising Cage Clamp	Copper	4.4 Lb-In	0.5 Nm	2	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED365/11	1	16 A	0.295 in	7.5 mm	M3	Horizontal with Board	Green	Through Hole	12 AWG	22 AWG	Brass	-30 ░C	105 ░C	Screw - Rising Cage Clamp	Copper	4.4 Lb-In	0.5 Nm	11	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED365/4	1	16 A	0.295 in	7.5 mm	M3	Horizontal with Board	Green	Through Hole	12 AWG	22 AWG	Brass	-30 ░C	105 ░C	Screw - Rising Cage Clamp	Copper	4.4 Lb-In	0.5 Nm	4	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED365/6	1	16 A	0.295 in	7.5 mm	M3	Horizontal with Board	Green	Through Hole	12 AWG	22 AWG	Brass	-30 ░C	105 ░C	Screw - Rising Cage Clamp	Copper	4.4 Lb-In	0.5 Nm	6	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED365/7	1	16 A	0.295 in	7.5 mm	M3	Horizontal with Board	Green	Through Hole	12 AWG	22 AWG	Brass	-30 ░C	105 ░C	Screw - Rising Cage Clamp	Copper	4.4 Lb-In	0.5 Nm	7	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED365/5	1	16 A	0.295 in	7.5 mm	M3	Horizontal with Board	Green	Through Hole	12 AWG	22 AWG	Brass	-30 ░C	105 ░C	Screw - Rising Cage Clamp	Copper	4.4 Lb-In	0.5 Nm	5	Polyamide (PA) Nylon	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.60
		50	$ 1.64
		100	$ 1.60
		1000	$ 1.16
		5000	$ 1.02
		10000	$ 1.00

Description

General part information

ED365 Series

4 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
