RP17A-13P-12PC

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG MALE 12POS INLINE

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG MALE 12POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	RP17A-13P-12PC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.2 mm, 1.6 mm
Contact Size [custom]	3, 9
Contact Type	Crimp
Fastening Type	Push-Pull
Features	Backshell, Cable Clamp, Strain Relief, Electrostatic Shield
Housing Color	Black

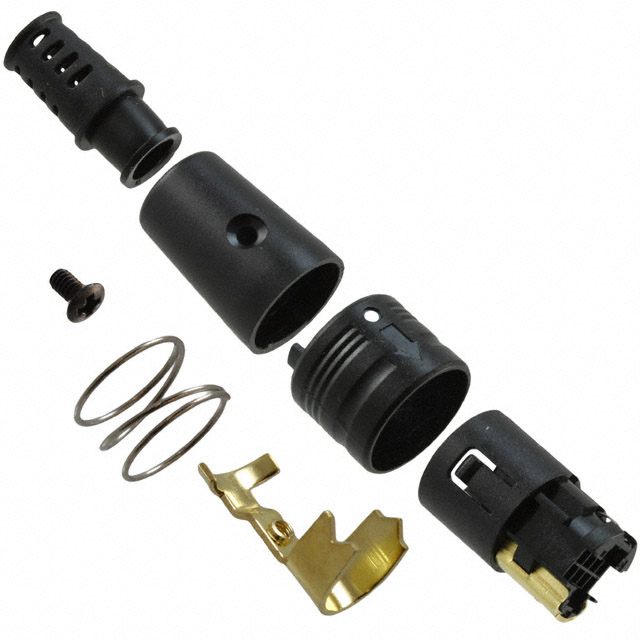

Includes	1 Strain Relief, 1 Cable Clamp, 1 Spring, 1 Screw, 1 Connector, 1 Backshell
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	13
Shielding	Shielded
Type	For Male Pins

Part	Material Flammability Rating	Shell Size - Insert	Includes	Insert Material	Shielding	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Material	Contact Type	Contact Shape	Housing Color	Fastening Type	Contact Size [custom]	Contact Size	Mounting Type	Orientation	Connector Type	Note	Type
Hirose Electric USA, Inc. RP17A-13P-12PC	UL94 V-0	13	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Polycarbonate (PC)	Shielded	Backshell Cable Clamp Electrostatic Shield Strain Relief	-10 °C	60 °C	12	Polycarbonate (PC)	Crimp	Circular	Black	Push-Pull	3 9	1.2 mm 1.6 mm	Free Hanging (In-Line)	Keyed	Plug Housing	Contacts Not Included	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Electrostatic Shield, Strain Relief
