5909-9103-000

Active

Radiall USA, Inc.

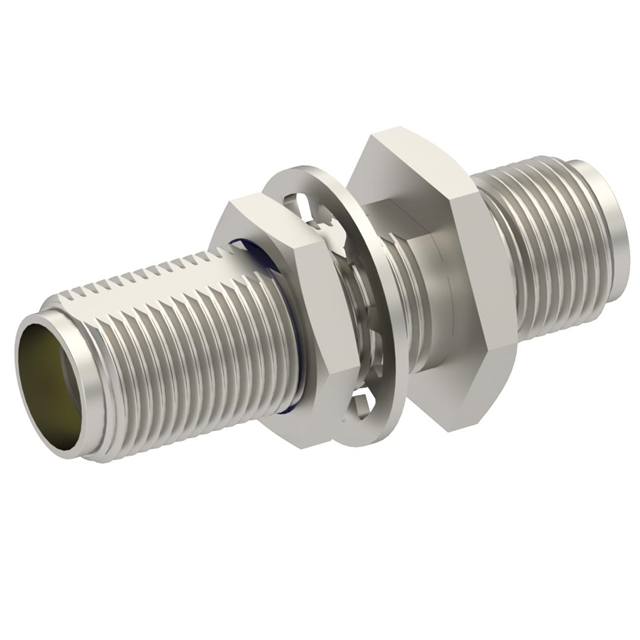

SMA FF STR BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA FF STR BHD

Technical Specifications

Parameters and characteristics for this part

Specification	5909-9103-000

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Style	Straight

Part	Adapter Series	Center Contact Material	Mating Cycles	Frequency - Max [Max]	Convert From (Adapter End)	Body Material	Mounting Feature	Center Contact Plating	Adapter Type	Conversion Type	Impedance	Center Gender	Style	Dielectric Material	Convert To (Adapter End)
Radiall USA, Inc. 5909-9103-000	SMA to SMA	Beryllium Copper	500	18 GHz	Female Socket SMA Jack	Stainless Steel	Bulkhead	Gold	Jack to Jack	Same Series	50 Ohms	Female to Female	Straight	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
